Evno VLX-Air (Complete Wireless System)

Designed specific for Violin and Viola

$759.00
Save $0.00

The VLX-Air is a side body mounted complete wireless system for violin, designed for superior performance and reliability. which includes the Evno Air wireless system.  At any time, you also have the option to add the PS95 and the various optional cables for hardwired and wireless use with other major brands, making your Air package very versatile.

Compact yet powerful professional wireless system, perfect for travel. Complete with 1/4 inch output ideal for microphone inputs and D.I. boxes.  The Air system is ideal for quick setups and travel while maintaining a high sonic quality in combination with an Evno designed microphone.  Using the same technology as the W1 and W2 systems the Air is Evno’s compact version.  Folding antennas and a small footprint allow for portability in a compact setup.  Powered by a provided 9V power supply the system also offers a battery option for power.  Using 2 (AA) batteries in the receiver powers the system for 4 hours of continuous use in situations where the power is not available making it possible to use the system in remote locations as needed.

The Air system is available in the 900-928MHz range for the United States, Brazil, Canada, and other free frequency regions while the 823-832Mhz range is setup for most territories in Europe. **see additional chart below for more information.

The Air is a 99 channel system, the channels are changed via a sync process that sends the channel change from the receiver to the transmitter and can be changed in seconds as needed.  Compatible with A1, A2, AH, and A4 transmitters *dependent on region and availability.

The VLX is the ideal choice for solo performances and principal soloists across various genres, from classical orchestras and jazz ensembles to bluegrass bands. This versatile system can be used in both low and high-volume settings.

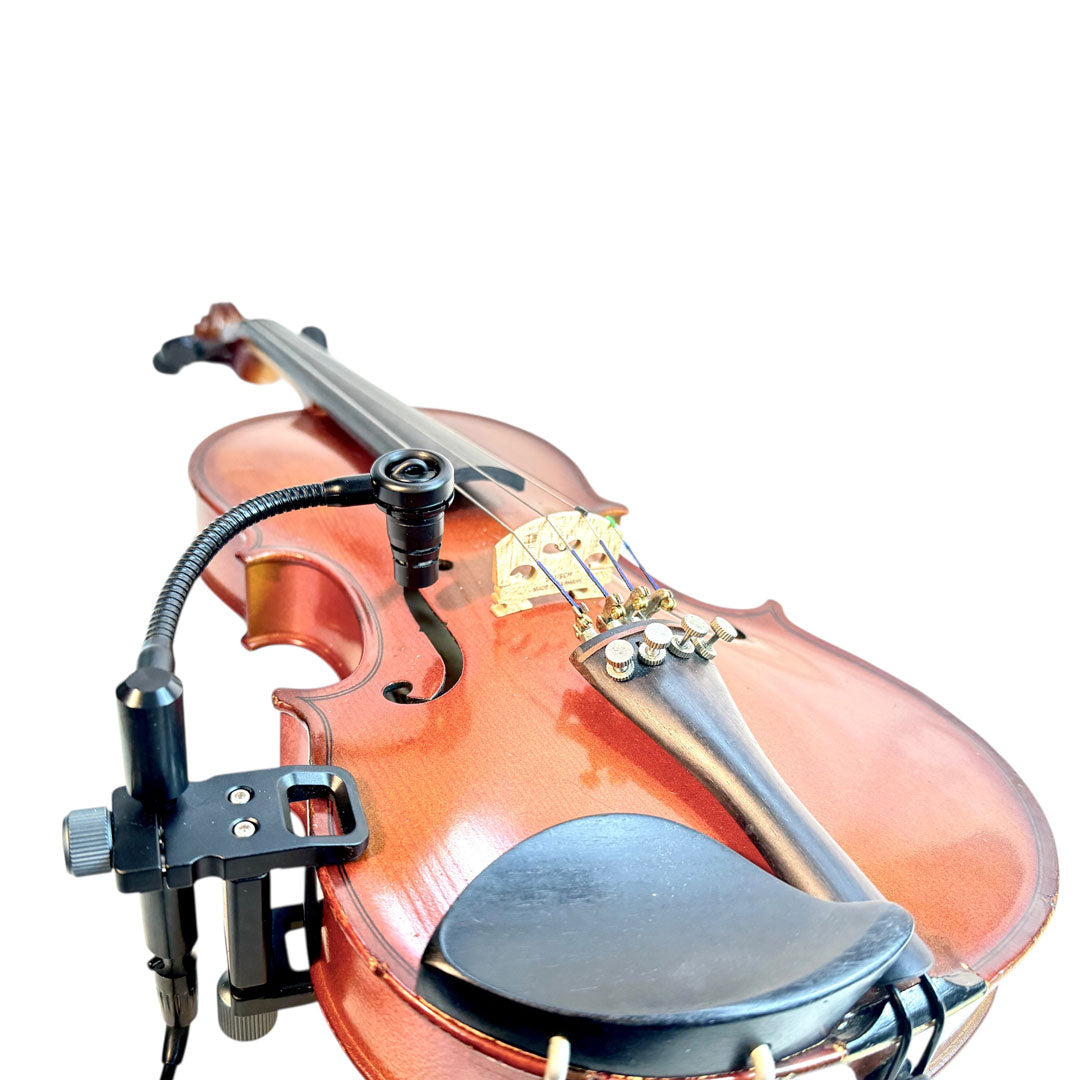

The EVNO VX-CL clamp features a robust and sturdy design, ensuring it stays securely in place. It allows for quick and easy removal and can be repositioned on the instrument as needed. The microphone’s slim body fits into the clamp for a strong hold, and its right-angle design directs the gooseneck towards the sound source, allowing the microphone head to be adjusted to various positions. The clamp is easy to attach and detach from the instrument and is heavily padded with recessed rubber to prevent damage. It tightens with a thumb screw, and a secondary thumb screw secures the microphone's body in the slotted provision. The clamp can open from 33.4mm (1.3 inches) to a maximum of 50.8mm (2 inches).

The Air system is shipped with an aluminum carrying case for protection however is small enough to pack in a horn case or carry-on for ease of travel.  The system in combination with an Evno microphone produces the most natural reproduction of an acoustic instrument on the market.

The Evno VLX-Air Wireless System offers a complete package for musicians seeking a portable, high-quality wireless solution for violin and viola. The system includes all necessary components to ensure a seamless and reliable performance experience.

  • Complete Wireless System

    Comes with Air Wireless System

  • Compatibility

    At any time add the PS95 for wired use or use with other major brand wireless

  • Side Mounting

    Includes VLX-CL study mounting clamp

  • Violin and Viola

    1st choice recommendation

Quantity
  • Main Features

  • Description

  • Specs

  • Included

  • Setup and Configuration

  • Frequency by

    Region

Evno Air Wireless System
≈ Compact size receiver for easy travel
≈ Aluminum case with foam packing included
≈ Receiver powered with included 9V power supply or 2 - AA batteries
≈ Perfect for pedal board mounting or next to you on stage
≈ UHF with 100 selectable channels - region dependent
≈ 1/4in (6.3mm) output
≈ Diversity antenna system with two built in antennas
≈ 80-meter (262ft) Range
≈ IR Sync from receiver for quick channel changes
≈ Air and A1 transmitter compatible with W1 and W2 receivers (region dependent)
≈ Compatible with A1, A2, A4, & AH transmitters
≈ LCD Display shows frequency, audio, and RF signals

Description

The Evno Air is a compact yet powerful professional wireless system, perfect for travel. Complete with 1/4 inch output ideal for microphone inputs and D.I. boxes.  The Air system is ideal for quick setups and travel while maintaining a high sonic quality in combination with an Evno designed microphone.  Using the same technology as the W1 and W2 systems the Air is Evno’s compact version.  Folding antennas and a small footprint allow for portability in a compact setup.  Powered by a provided 9V power supply the system also offers a battery option for power.  Using 2 (AA) batteries in the receiver powers the system for 4 hours of continuous use in situations where the power is not available making it possible to use the system in remote locations as needed.


The Air system is available in the 900-928MHz range for the United States, Brazil, Canada, and other free frequency regions.



The Air is a 99 channel system, the channels are changed via a sync process that sends the channel change from the receiver to the transmitter and can be changed in seconds as needed.  Compatible with A1, A2, AH, and A4 transmitters *dependent on region and availability.



The Air system is shipped with an aluminum carrying case for protection however is small enough to pack in a horn case or carry-on for ease of travel.  The system in combination with an Evno microphone produces the most natural reproduction of an acoustic instrument on the market.



The Evno Air Wireless System offers a complete package for musicians seeking a portable, high-quality wireless solution for their Evno Microphone. The system includes all necessary components to ensure a seamless and reliable performance experience.

Receiver:
    •    Frequency Range: 902-928 MHz
    •    Receive Sensitivity: -110 dBm (sinad ≥30 dB)
    •    Signal/Noise Ratio: >105 dB
    •    Power Supply: DC 12V / 500 mA
    •    Audio Output: 1- 1/4 inch
    •    Antenna:  Detachable, Dual

Transmitter:
    •    Frequency Range: 902-928 MHz
    •    RF Power: 10 mW
    •    Microphone Type: Condenser
    •    Directivity: Cardioid
    •    Deviation: ±48 KHz
    •    Antenna: 1/4 wave length wire type
    •    Battery Voltage: 1.5V (1x1.5V AA Battery)
    •    Power Consumption: 14 hours, battery-dependent

SYSTEM SPECIFICATION:

  • Comprehensive Performance
  • Frequency Range: 902-928MHz, 823-832Mhz
  • Modulation Mode: FM
  • Dynamic Range: >100dB
  • Frequency Response: 60Hz-17KHz±3dB
  • Total Harmonic Distortion: <0.5% at 1KHz
  • Signal/Noise Ratio: ≥108dB
  • Distance: Up to 250 feet / 80 m


Each package includes:
    •    Instrument-specific microphone: Tailored to the acoustic properties of the specific instrument.
    •    Complete Air Wireless System: Ensures high-quality wireless audio, with Diversity receiver, and attached antennas

  • Air Compact Receiver: For robust and reliable audio reception.
  • 1/4 Inch (6.35 mm) Audio Cable
  • Power Adaptor: Ensures consistent power supply. Optionally powered by 2 (AA) batteries.
  • User Guide: Comprehensive instructions for setup and use.
  • Rugged Aluminum Carrying Case: Durable and protective for easy transport.
  • Evno A1 Wireless Clip-On Instrument Microphone Transmitter: High-quality audio transmission belt pack-free design.

Setup and Configuration
    •    Power Supply: Includes a 9V power supply for easy setup.
    •    Channel Selection: Features 99 available channels that can be quickly changed using an IR sync process, allowing for rapid adjustments on stage.
    •    Compatibility: Can be used with up to 5-6 systems simultaneously, making it ideal for horn style bands. Compatible with other Evno systems (Air, W2) and transmitters (A2, AH, A4), depending on region and availability.
    •    Frequency Ranges:
    ◦    900-928 MHz: For the United States, Brazil, Canada, and other free frequency regions. *See additional information for all regions including South America.

902-928MHz Countries of operation:

Australia (915-928MHz)
Brazil (902-907, 915-927.75MHz)
Canada
Columbia
Costa Rica
Dominican Republic
Ecuador
Guyana
Hong Kong (923-925MHz)
Indonesia (923-925MHz)
Mexico
New Zealand (915-928Mhz)
Paraguay
Peru
Puerto Rico
South Korea (925-928)
Venezuela
United States of America

Craftsmanship and Features

Evno Air Receiver

Compact yet powerful professional wireless system, perfect for travel. Complete with 1/4 inch output ideal for microphone inputs and D.I. boxes.  The Air system is ideal for quick setups and travel while maintaining a high sonic quality in combination with an Evno designed microphone.  Using the same technology as the W1 and W2 systems the Air is Evno’s compact version.  Folding antennas and a small footprint allow for portability in a compact setup.  Powered by a provided 9V power supply the system also offers a battery option for power.  Using 2 (AA) batteries in the receiver powers the system for 4 hours of continuous use in situations where the power is not available making it possible to use the system in remote locations as needed.

Evno A1 Transmitter

Beltpack free transmitter clips to an Evno Microphone.

Air Controls

Evno Air Case

Included with an Evno Air Wireless System

VLX-CL Clamp

Lightweight aluminum clamp allows for quick instrument changes. The VLX-CL clamp is designed to clamp to the side of the violin or viola.  The clamp opens from 33.4mm / 1.3 inches to a max of 50.8mm / 2 inches. A tightening screw snugs up the clamp on the instrument.  Padded feet cushion the clamp to not damage the instrument. Easy to take off and on.  The microphone secures by the narrowed section in the body to the VLX-CL clamp and allows for placement of the microphone in many positions.
