Evno TBX-ST Trombone Microphone (Wired Stand Mounting)

Designed specific for Trombone and Low Brass

$629.00
$729.00
Save $100.00

The Evno TBXST trombone and low brass microphone system is designed and manufactured by hand in the USA. The microphone is designed specifically for trombone and low brass to produce the most natural reproduction of sound possible while allowing for the most gain before feedback.  The TBXST system mounts to a traditional microphones stand and includes a high SPL tolerance suited for a stronger level of output that a brass instrument can produce.  The microphone will allow you to be heard as you sound without coloration giving the audience a true representation of the sound the player works a lifetime to develop. Designed for sound engineers looking for a instrument specific microphone for traditional microphone stands or for the player in an orchestra or pit where movement is not necessary.

The TBXST is the perfect choice from solo performance settings, principal soloist’s in all genres, to high energy horn section bands of all styles.  The system can be used in low to high volume applications without the worry of saturating the element due to volume or high end feedback from surrounding instruments. The microphone is also compatible with the Evno Swivel clamp for bell mounted applications.

The TBX gooseneck, designed in the USA, holds position as desired while being lightweight in design.  The microphone itself is built with perfect venting as well as a highly attractive machining process creating a beautiful look while allowing the frequencies of the instrument to fully be captured by the microphone itself.  Suspended in a standard microphone variable suspension of 7 points, the microphone allows for simple and easy replacements of the O rings as needed. The microphone body is terminated with a 3 pin mini XLR connection which is used for both wired and wireless connections.

The microphone system can be used wired or wirelessly.  The EVNO TBXST is shipped with the PS95 power supply for wired use while still being adaptable and ready to use with EVNO, Shure, AKG, or Sennheiser wireless systems.  (AKG and Sennheiser cables ordered separately to mate the microphone with another brand wireless or available in a package with the microphone and cable for customers who already own an Evno, AKG, Shure, or Sennheiser system.) The included cable with the TBX model works both with the Evno PS95 phantom power adapter, and Shure wireless transmitters.  By-pass the cable to connect to Envo clip-on wireless transmitters.  Additional packages include the TBX system with EVNO Wireless or the TBX microphone setup directly for use with Shure, AKG, or Sennheiser wireless systems.

The complete Evno TBXST setup includes an Evno branded leather microphone bag, PS95 power supply / preamp, Evno ST-CL stand clamp, TBX Microphone, and cable.  XLR cables to connect from the PS95 power supply to a mixing console not included. A standard XLR / Mic cable is required.

  • Hardwired setup

    Powered by PS95 Preamp

  • Wireless Compatible

    Evno, Shure, Sennhieser,

    Akg, McCormick (Cables sold separately)

  • Stand Mounted

    Includes ST-CL stand mounting clamp and compatible with Optional SX-CL bell mounting clamp

  • Trombone and Low Brass

    1st choice recommendation

Quantity

Craftsmanship and Features

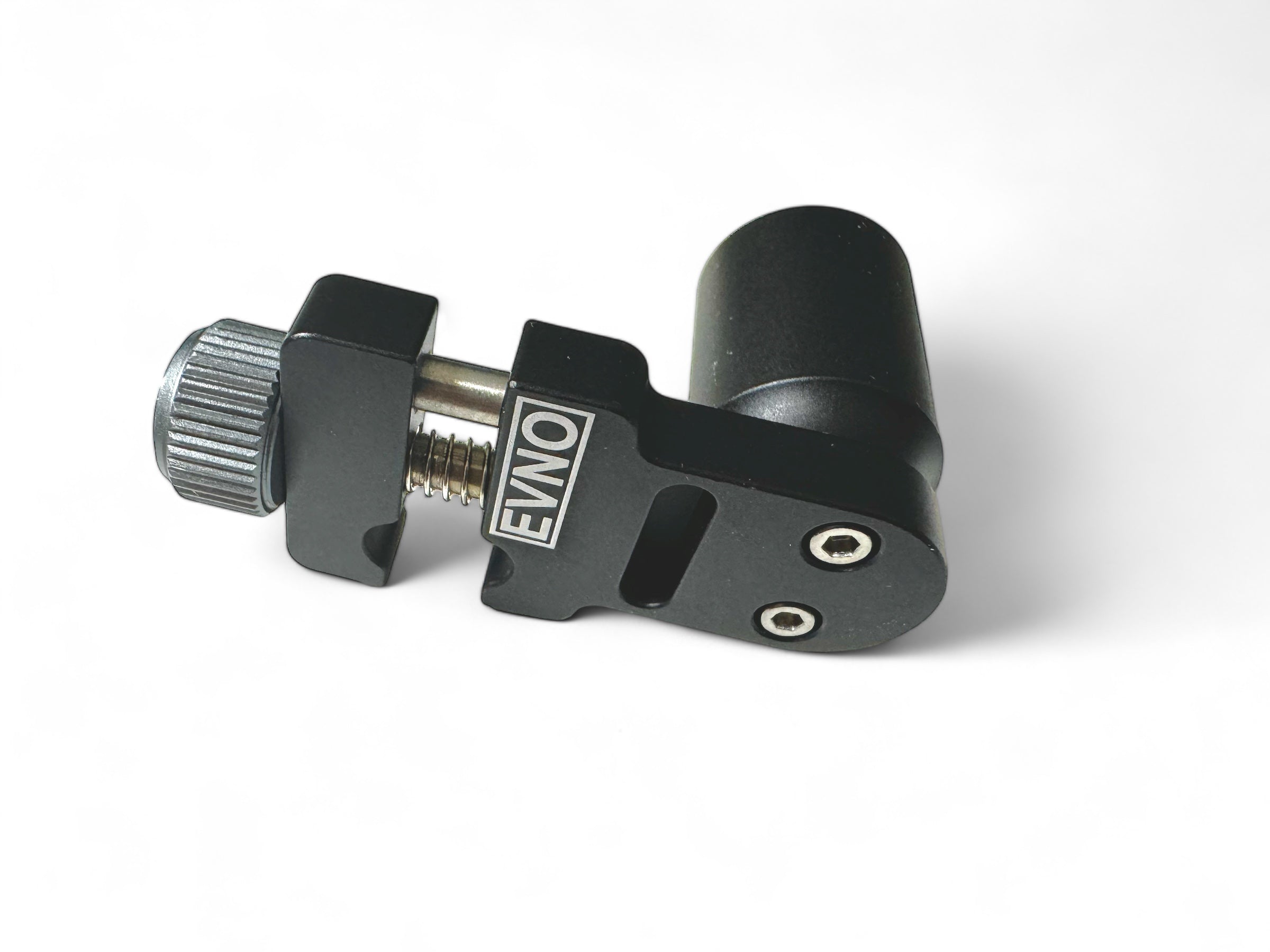

 ST-CL Clamp

The Clamp attaches to a standard threaded microphone stand which then allows an Evno microphone to be attached to the clamp.  A perfect solution for players that sit in a pit, perform with an orchestra, a big band, or any place that where space has limited movement and a clip-on system is not required.  Allows for quick and easy placement of an instrument on and off of an instrument stand while not playing.  The setup is contained to a traditional microphone stand keeping all cables and power supplies away from your instrument and or music stand.  The STCL can be placed on a microphone boom stand to reach over the bell of a saxophone, in front of an acoustic guitar, or on a straight stand at various heights for trumpets and trombones. Evno microphones attach to the clamp by a thumb tightening screw and can be placed either on the body of the microphone for a perfect fit or attached to the gooseneck which allows for alternate positioning as needed.   Various placement options allow a nice alternative in home studio use which allows the player to close mic an instrument where traditional large diaphragm microphones may be limited due to space or availability.

Flex-Stay Gooseneck
(Made in USA)

5.5” Flex-stay Gooseneck holds position as desired

Powered by PS95 Preamp/power supply

Powered by the PS95 with phantom power or (1) AA Battery. When used wireless, the Evno A1 powers the microphone or other brand transmitters

Made in the USA

All parts are made by hand and assembled in the USA!

  • Main Features

  • Description

  • Specs

  • Included

Evno TBXST Stand Mounted Trombone Microphone System
≈ Designed specific for Trombone and low brass instruments
≈ Mounts to traditional microphone stand
≈ Compatible with bell mounting Evno Swivel clamp
≈ High SPL level capsule / threshold
≈ Ideal for soloist and horn sections including large ensembles of all styles
≈ 5.5” Flex-stay Gooseneck holds position
≈ Compatible with Evno, Shure, Sennheiser, AKG, & McCormick Wireless
≈ Powered by PS95 for hardwired connection or wireless transmitters
≈ Includes Evno plastic carrying case
≈ Modular system breaks down for ease of transport



Description

The Evno TBXST trombone and low brass microphone system is designed and manufactured by hand in the USA. The microphone is designed specifically for trombone and low brass to produce the most natural reproduction of sound possible while allowing for the most gain before feedback.  The TBXST system mounts to a traditional microphones stand and includes a high SPL tolerance suited for a stronger level of output that a brass instrument can produce.  The microphone will allow you to be heard as you sound without coloration giving the audience a true representation of the sound the player works a lifetime to develop. Designed for sound engineers looking for a instrument specific microphone for traditional microphone stands or for the player in an orchestra or pit where movement is not necessary.



The TBXST is the perfect choice from solo performance settings, principal soloist’s in all genres, to high energy horn section bands of all styles.  The system can be used in low to high volume applications without the worry of saturating the element due to volume or high end feedback from surrounding instruments. The microphone is also compatible with the Evno Swivel clamp for bell mounted applications.



The TBX gooseneck, designed in the USA, holds position as desired while being lightweight in design.  The microphone itself is built with perfect venting as well as a highly attractive machining process creating a beautiful look while allowing the frequencies of the instrument to fully be captured by the microphone itself.  Suspended in a standard microphone variable suspension of 7 points, the microphone allows for simple and easy replacements of the O rings as needed. The microphone body is terminated with a 3 pin mini XLR connection which is used for both wired and wireless connections.

The microphone system can be used wired or wirelessly.  The EVNO TBXST is shipped with the PS95 power supply for wired use while still being adaptable and ready to use with EVNO, Shure, AKG, or Sennheiser wireless systems.  (AKG and Sennheiser cables ordered separately to mate the microphone with another brand wireless or available in a package with the microphone and cable for customers who already own an Evno, AKG, Shure, or Sennheiser system.) The included cable with the TBX model works both with the Evno PS95 phantom power adapter, and Shure wireless transmitters.  By-pass the cable to connect to Envo clip-on wireless transmitters.  Additional packages include the TBX system with EVNO Wireless or the TBX microphone setup directly for use with Shure, AKG, or Sennheiser wireless systems.



The complete Evno TBXST setup includes an Evno branded leather microphone bag, PS95 power supply / preamp, Evno ST-CL stand clamp, TBX Microphone, and cable.  XLR cables to connect from the PS95 power supply to a mixing console not included. A standard XLR / Mic cable is required.

Frequency Response

Polar Pattern

The complete Evno TBX-ST setup includes:

  • Evno PS95 power supply / preamp
  • Evno ST-CL Clamp
  • TBX Microphone
  • Leather Carry pouch
  • Cable (Ta4) Connects microphone to PS96 Preamp or Shure Wireless

**XLR cables to connect from the PS95 power supply to a mixing console not included. A standard XLR / Mic cable is required for hardwired connections.
