Evno W2 - Dual Wireless System

The Evno W2 is a dual wireless system specifically designed to accommodate two Evno microphones active at the same time. This allows for the player to use any combination of Evno microphones wireless at the same. A flute, clarinet, or saxophone etc, can both be active to use at the same time depending on what your particular needs maybe. Independent (2) XLR outputs offer separate control of each microphone / transmitter for greater control of EQ and volume over each channel. The W2 offers a Diversity antenna system which provides a distance at about 100meters.

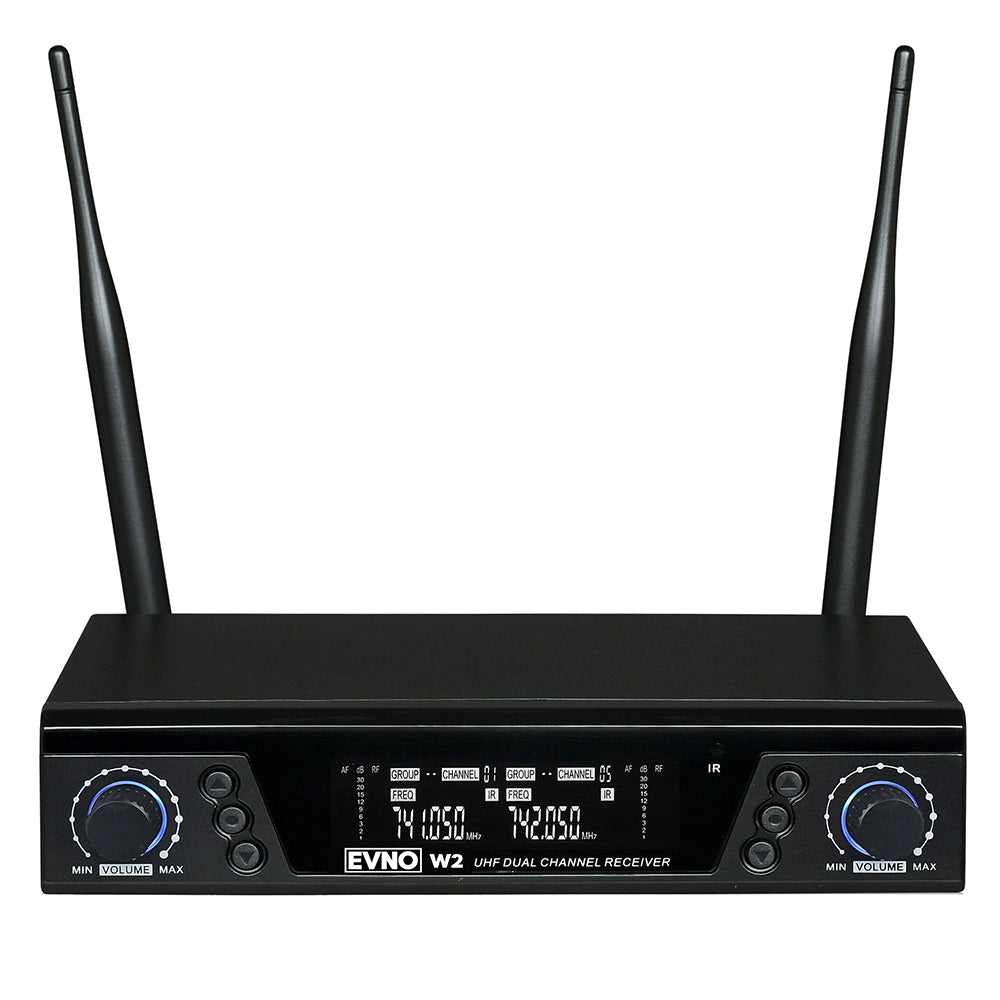

The Evno W2 dual wireless operates two separate antennas, one for each side of the receiver / microphone / transmitter. The W2 is housed in a metal chassis with 2-XLR and 1-1/4in output which mirrors side in the case where you need a 1/4in output. A 1/2 rack-mountable design, the system come with a rack-kit and extension cables to place in a standard rack unit. The extension kit places the antennas on the front of the of the rack case allowing quick removal of the antennas for storage. The antennas disconnect with an BNC locking connector to either the back or front when racked.

Powered by an included power supply is easy to setup. The available 99 channels are changed with with a sync’ing process that sends the signal from the receiver to the transmitters with IR. Easy to change quickly on stage. Use of 5-6 systems simultaneously allows for horn style bands of all types to use an Evno belt-pack free wireless system. The W2 can also be used along side the Air and W1 systems and are not only compatible with both but also compatible with the A2, AH, and A4 transmitters. *Dependent on region and availability.

The W2 system is available in the 900-928MHz range for the United States, Brazil, Canada, and other free frequency regions. **see chart below for more information.

The W2 system is shipped with a rack-kit, antennas, power supply, extension cables, and the A1 transmitter to combine with an Evno microphone. The system in combination with an Evno microphone produces the most natural reproduction of an acoustic instrument on the market. For dual operation, a 2nd transmitter and microphone must be selected and purchased as desired and needed.

EVNO W2 components:

Dual receiver

Rack mount kit

2 BNC antennas

Power supply

User guide

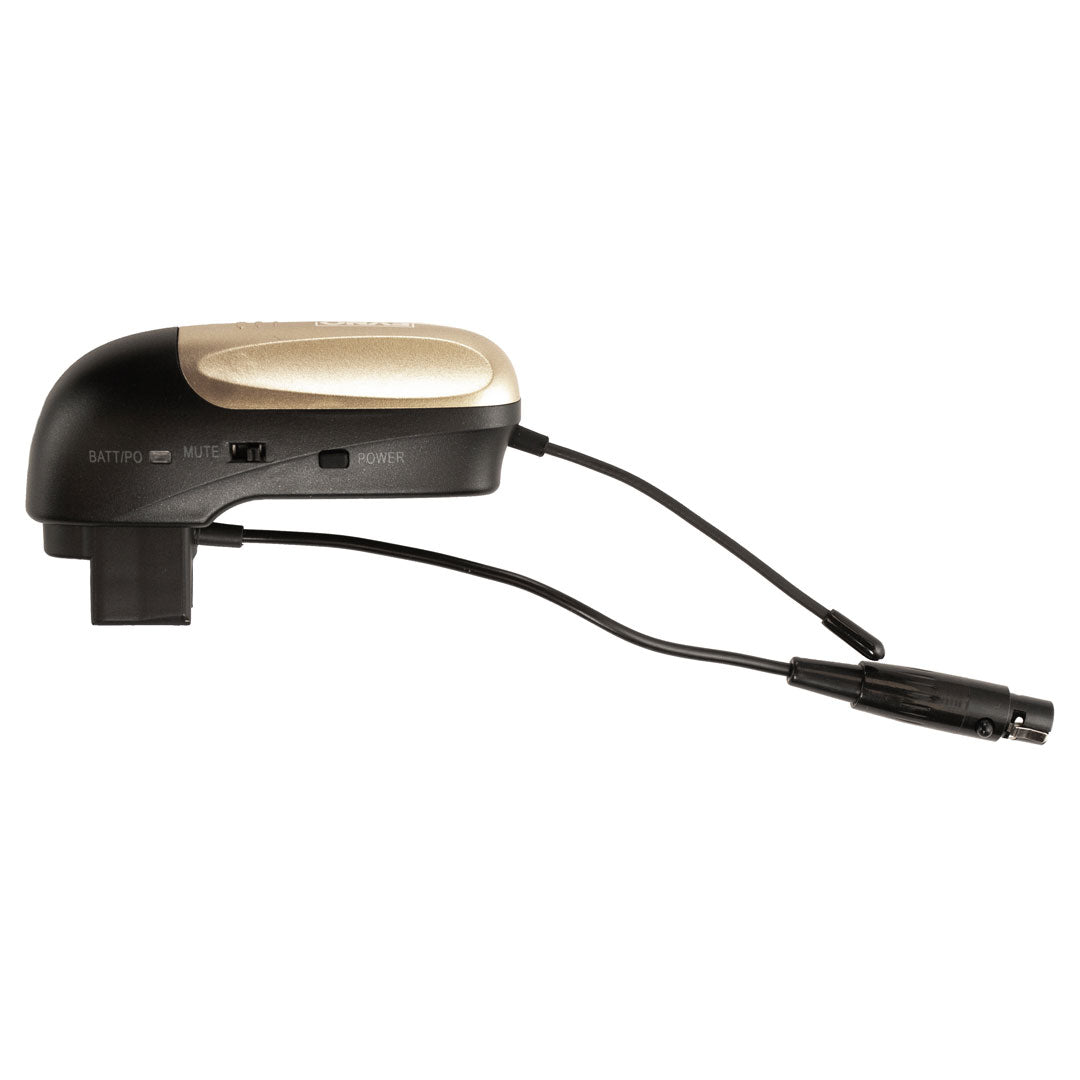

EVNO A1 wireless clip-on instrument microphone transmitter

902-928MHz Countries of operation:

Australia (915-928MHz)

Brazil (902-907, 915-927.75MHz)

Canada

Columbia

Costa Rica

Dominican Republic

Ecuador

Guyana

Hong Kong (923-925MHz)

Indonesia (923-925MHz)

Mexico

New Zealand (915-928Mhz)

Paraguay

Peru

Puerto Rico

South Korea (925-928)

Venezuela

United States of America

RECEIVER:

Frequency Range: 902-928MHz

Receive Sensitivity: -110dBm (sinad ≥30dB)

Signal/Noise Ratio: >105dB

Power Supply: DC12V/ 500mA

Audio Output: 1-XLR, 1- 1/4in

Antenna: Diversity, Detachable

TRANSMITTER:

Frequency Range: 902-928MHz

RF Power: 10mW

Microphone Type: Condenser

Directivity：Cardioid

Deviation: ±48KHz

Antenna: 1/4 wave Length wire type

Battery Voltage: 1.5V (1x1.5V AA Battery)

Power Consumption: 14 hours, battery-dependent

SYSTEM SPECIFICATION:

Comprehensive Performance

Frequency Range: 902-928MHz

Modulation Mode: FM

Dynamic Range: >100dB

Frequency Response: 60Hz-17KHz±3dB

Total Harmonic Distortion: <0.5% at 1KHz

Signal/Noise Ratio: ≥108dB

Distance: Up to 500 feet / 150 m
