Evno TBX-Ta3 Trombone Microphone for AKG (Opt Wireless-AKG/Evno/McCormick)
Evno TBX-Ta3 Trombone Microphone for AKG (Opt Wireless-AKG/Evno/McCormick)
Evno TBX-Ta3 Trombone Microphone for AKG (Opt Wireless-AKG/Evno/McCormick)
Evno TBX-Ta3 Trombone Microphone for AKG (Opt Wireless-AKG/Evno/McCormick)

Evno TBX-Ta3 Trombone Microphone for AKG (Opt Wireless-AKG/Evno/McCormick)

Designed specific for Trombone and Low Brass

$529.00
Save $0.00

The TBX-Ta3 system ships with the Evno TBX trombone and low brass microphone, a 3pin mini XLR - 3pin mini XLR cable to connect to AKG Wireless, and a leather microphone carrying pouch. The TBX is designed specific for lower brass instruments and ships with the Evno Swivel clamp. The microphone is compatible with all Evno Wireless systems, the PS95 preamp for wired connections, and the ST clamp for a stand mounted option.


The included Ta3 cable is compatible with AKG. An additional cable is required for use with the PS95 Preamp, Shure, or Sennheiser.


Evno Microphone Systems makes it possible to use a wireless system from other major brands. Shure, Sennheiser, AKG, and McCormick are all compatible with an Evno microphone. Note: These options operate with a traditional belt pack style transmitter and only an Evno Wireless system offers the belt pack free option. The package is setup for the customer that already owns a wireless system from one of these brands or needs a secondary microphone.

  • Optional Wireless

    Includes Ta3 cable for AKG Wireless.  Add optional cables for compatible with PS95 and Evno A2 Transmitters

  • Compatibility

    At any time add the PS95 for wired use or an Evno Wireless System for beltpack free wireless

  • Bell Mounted

    Optional microphone stand mounting

  • Trombone & Low Brass

    1st choice recommendation with high SPL Tolerances
Quantity

  • Main Features

  • Compatibility

  • Operation

  • Included

  • Why use Optional wireless?

  • Integration

Evno Microphones and Optional Wireless Solutions:



Evno Microphone Systems makes it possible to use a wireless system from other major brands.  Shure, Sennheiser, AKG, and McCormick are all compatible with an Evno microphone. Note that these options are only available with a traditional belt pack style transmitter and only an Evno Wireless system offers the belt pack free option.

For the customer that already owns a wireless system from one of these brands you can order an Evno microphone package with the cable specific for each brand.

Compatibility with Major Brands:
Evno microphones are compatible with Shure, Sennheiser, AKG, and McCormick wireless systems.
These packages come with cables specifically designed to connect with the wireless systems of these brands.



Ta4: Mic with cable for Shure wireless, Evno PS95 Preamp / power supply, and Evno A2 Beltpack Transmitter
Ta3: Mic with cable for AKG and McCormick wireless
3.5: Mic with cable for Sennheiser wireless



The traditional belt pack style transmitter is used for compatibility with Shure, Sennheiser, AKG, and McCormick.


NOTE: Only the A1 Evno Wireless transmitter offers a belt pack-free option for convenience and mobility.



The complete setup includes:

  • Evno Microphone of choice (Determined by instrument)
  • Evno Clamp specific for each model
  • Cable
  • Leather carrying microphone pouch



Why Would Someone Want or Need This?


Travel and Regional Frequency Compliance:
When traveling outside the USA, different countries and regions may have specific regulations regarding wireless frequency bands. Using a wireless system that complies with local regulations is crucial to avoid interference and legal issues. By having the correct cable, you can easily connect an Evno microphone to a wireless system that operates on the required frequency band in another country. This ensures that your equipment functions correctly and legally wherever you perform.


Consistency in Touring Bands:
Touring bands often prefer using a unified wireless system to manage multiple channels efficiently. This consistency allows for better control over the audio setup, minimizing the risk of interference and technical issues during live performances. An Evno microphone package provides the flexibility to integrate with existing wireless systems (Shure, Sennheiser, AKG, or McCormick) while still benefiting from the high-quality sound capture Evno microphones are known for. This adaptability ensures that the best microphone can be used without disrupting the band's wireless setup.


Flexibility and Versatility:
Having the option to use various cables compatible with different wireless systems (Shure, Sennheiser, AKG, McCormick) offers significant flexibility. This versatility is beneficial for:
    •    Multi-brand Wireless Systems: You can switch between different wireless systems as needed without changing microphones, which is cost-effective and convenient.
    •    Rental and Backup Equipment: In cases where you might need to rent or borrow wireless systems, having the right cables allows you to use your Evno microphone with any available system.
    •    Future-proofing: As wireless technology evolves or if you decide to switch to a different brand, your Evno microphone remains usable, ensuring long-term value.
    •    Your sound remains great:  Being that these options are there, the player does not have to settle for a stand mic or another brand of clip-on that may not perform as well.



For more information on the optional cables, visit the “accessories / cables” section of the Evno website.

The Evno microphone packages include the microphone and the appropriate cable with the correct connector and wiring for seamless connection.


All packages are compatible with the Evno PS95 preamp/power supply and can be upgraded to the Evno Wireless or a hard wired system at any time.

Craftsmanship and Features

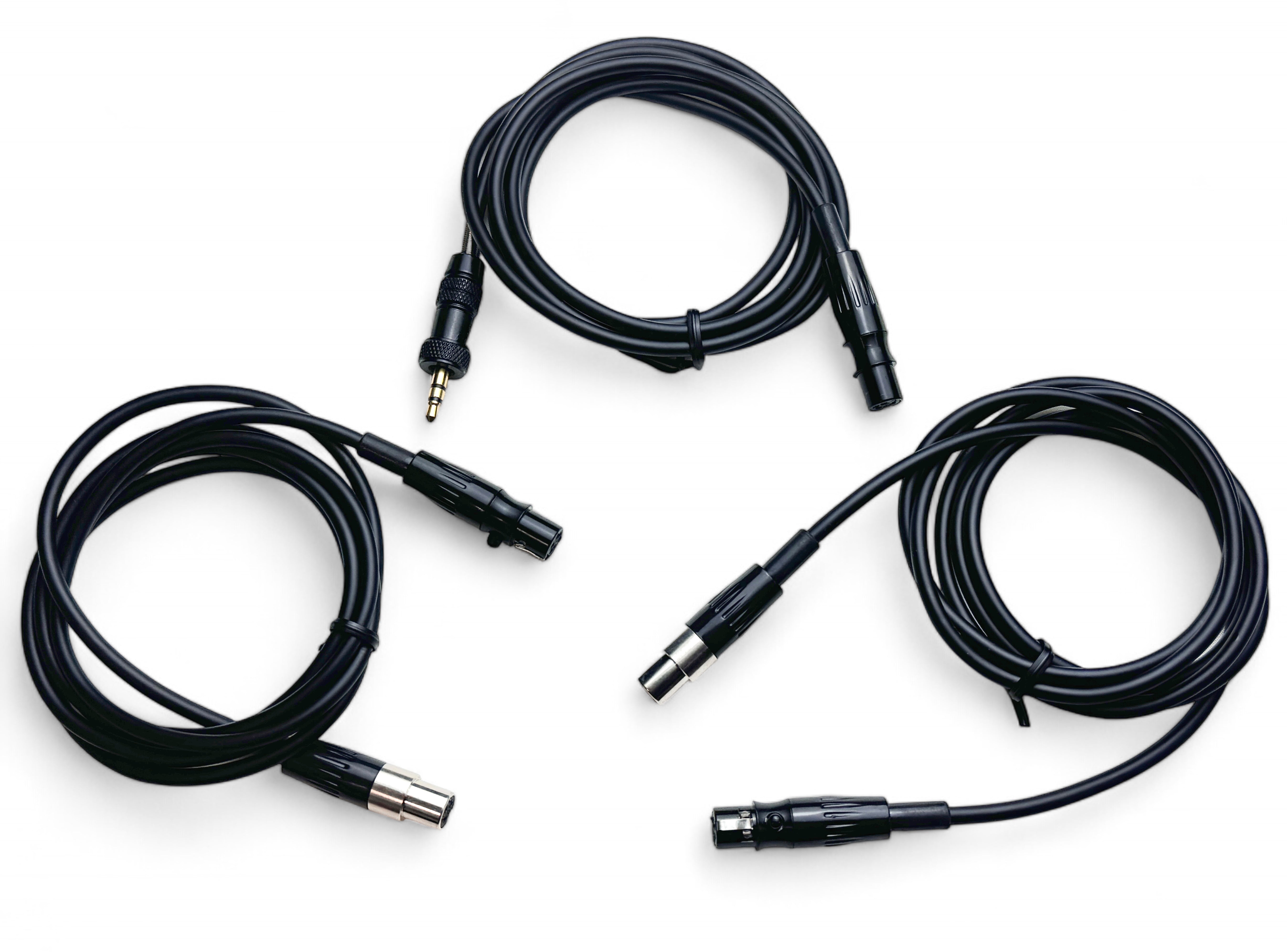

Cables

Evno Microphone Systems makes it possible to use a wireless system from other major brands.  Shure, Sennheiser, AKG, and McCormick are all compatible with an Evno microphone.



Ta4: Locking 4 pin mini xlr connector

Ta3: Locking 3 pin mini xlr connector

3.5: Locking 1/8in connector



All cables include a 3 pin mini xlr on the Evno microphone end.

Flex-Stay Gooseneck
(Made in USA)

5.5” Flex-stay Gooseneck holds position as desired

Made in the USA

All parts are made by hand and assembled in the USA!

SX Recomendations

EVNO FEATURED ACCESSORIES

Evno ST-CL (Traditional Microphone Stand Mounting)
Evno ST-CL (Traditional Microphone Stand Mounting)

Mount an Evno to a traditional mic stand

Evno ST-CL (Traditional Microphone Stand Mounting)

    •    Design: For traditional microphone stand attachment. The Evno ST-CL is intended to mount Envo instrument microphones to a traditional microphone stand. The Clamp attaches to a standard threaded microphone stand which then allows an Evno microphone to be attached to the clamp.
    •    Instruments: Various, including saxophone, acoustic bass, acoustic guitar, trumpet, and trombone.
    •    Features: Attaches to standard threaded microphone stands, allowing Evno microphones to be mounted and positioned using either the body or gooseneck attachment depending on the reach required.
    •    Systems: Ideal for players in orchestras, big bands, or pit settings where space is limited and a clip-on system is not required.

Notes: Various placement options allow a nice alternative in home studio use which allows the player to close mic an instrument where traditional large diaphragm microphones may be limited due to space or availability.
$59.00
Windscreen - Small

Extra Windscreen / Replacement



Windscreen - Small

Evno windscreens are available in two sizes, tailored to fit the two different sizes of capsule shells. These windscreens are included with each microphone but use is optional designed to protect the microphone diaphragm from gusts of air, which can occur in windy conditions. They are particularly beneficial for more aggressive players who produce higher volume levels, as the resulting wind stream can be on occasion be noticed. The windscreens help enhance sound by reducing breath noise. Conversely, for softer players, the breath noise produced on certain instruments may be a deliberate part of their sound, making the use of a windscreen less desirable.


Evno windscreens come in two sizes to accommodate different microphone capsule shells:

WS-SM: - Small Size Windscreens
Compatible with the following models:
    •    FX
    •    GTX
    •    CLX lower
    •    CHX
    •    VX
    •    SPX1
    •    SPX2 lower
    •    BSX
$12.00
$13.00
Ta4 Cable - Evno to Shure & PS95 Power/Preamp

Extra Ta4 Cable / Replacement

Ta4 Cable - Evno to Shure & PS95 Power/Preamp

EVNO Microphones are designed to be versatile and compatible with a range of wireless systems through the use of specific cables. It is crucial to use the correct cables to ensure optimal performance and to avoid damaging the microphone capsule.


Evno Microphone Systems makes it possible to use a wireless system from other major brands. Shure, Sennheiser, AKG, and McCormick are all compatible with an Evno microphone. Note: These options operate with a traditional belt pack style transmitter and only an Evno Wireless system offers the belt pack free option.


The optional OR replacement cable is setup for the customer that already owns a wireless system from one of these brands. The Ta4 is also compatible with the PS95 Preamp / power supply for hard wired use.

  • Standard Cable: EVNO TA4
    • Connectors: 3-pin mini XLR (microphone side) to 4-pin mini XLR
      Uses:
    • Connects EVNO microphones to the PS95 preamp/power supply.
    • Connects EVNO microphones to Shure wireless belt packs.
    • Connects EVNO microphones to EVNO A2 wireless belt packs.

      Important Note: This is the standard cable and substitutes should not be used as they could damage the microphone capsule.
$49.00
$79.00
Evno W1 - TRUE DIVERSITY Wireless System
Evno W1 - TRUE DIVERSITY Wireless System
Evno W1 - TRUE DIVERSITY Wireless System
Evno W1 - TRUE DIVERSITY Wireless System

Add the W1 Wireless System to the package for beltpack free operation.

Evno W1 - TRUE DIVERSITY Wireless System

The Evno W1 is the flag-ship wireless setup in the Evno wireless line.  The W1 offers a True Diversity antenna system which provides the greatest distance at about 150meters.  The Evno W1 True Diversity operates two antennas and two receivers at the same time while combining the audio.  The antenna system switches the audio between antenna A and B depending on which antenna signal is stronger at the position on the stage.  A True Diversity system is more stable and advanced as it also offers greater range as apposed to a diversity system with a single or double antenna.


The W1 is housed in a metal chassis with 1-XLR and 1-1/4in output. A 1/2 rack-mountable design, the system come with a rack-kit and extension cables to place in a standard rack unit.  The extension kit places the antennas on the front of the of the rack case allowing quick removal of the antennas for storage. The antennas disconnect with an BNC locking connector to either the back or front when racked.
Powered by an included 12V power supply is easy to setup. The available 99 channels are changed with with a sync’ing process that sends the signal from the receiver to the transmitters with IR.  Easy to change quickly on stage. Use of 5-6 systems simultaneously allows for horn style bands of all types to use an Evno belt-pack free wireless system.  The W1 can also be used along side the Air and W2 systems and are not only compatible with both but also compatible with the A2, AH, and A4 transmitters. *Dependent on region and availability.


The W1 system is available in the 900-928MHz range for the United States, Brazil, Canada, and other free frequency regions while the 823-832Mhz range is setup for most territories in Europe. **see chart below for more information.
The W1 system is shipped with a rack-kit, antennas, 12V power supply, extension cables, and the A1 transmitter to combine with an Evno microphone. The system in combination with an Evno microphone produces the most natural reproduction of an acoustic instrument on the market.
$499.00
$699.00
Evno Air - Compact Wireless System

Add the Air Wireless System to the package for beltpack free operation.

Evno Air - Compact Wireless System

The Evno Air is compact yet powerful professional wireless system, perfect for travel. Complete with 1/4 inch output ideal for microphone inputs and D.I. boxes. The Air system is ideal for quick setups and travel while maintaining a high sonic quality in combination with an Evno designed microphone. Using the same technology as the W1 and W2 systems the Air is Evno’s compact version. Folding antennas and a small footprint allow for portability in a compact setup. Powered by a provided 9V power supply the system also offers a battery option for power. Using 2 (AA) batteries in the receiver powers the system for 4 hours of continuous use in situations where the power is not available making it possible to use the system in remote locations as needed.

The Air system is available in the 900-928MHz range for the United States, Brazil, Canada, and other free frequency regions while the 823-832Mhz range is setup for most territories in Europe. **see chart below for more information. The Air is a 99 channel system, the channels are changed via a sync process that sends the channel change from the receiver to the transmitter and can be changed in seconds as needed. Compatible with A1, A2, AH, and A4 transmitters *dependent on region and availability.


The Air system is shipped with an aluminum carrying case for protection however is small enough to pack in a horn case or carry-on for ease of travel. The system in combination with an Evno microphone produces the most natural reproduction of an acoustic instrument on the market.
$459.00
$579.00
Evno W2 - Dual Wireless System

Add the W2 Wireless System to the package for beltpack free operation.

Evno W2 - Dual Wireless System

The Evno W2 is a dual wireless system specifically designed to accommodate two Evno microphones active at the same time. This allows for the player to use any combination of Evno microphones wireless at the same. A flute, clarinet, or saxophone etc, can both be active to use at the same time depending on what your particular needs maybe. Independent (2) XLR outputs offer separate control of each microphone / transmitter for greater control of EQ and volume over each channel. The W2 offers a Diversity antenna system which provides a distance at about 100meters.

The Evno W2 dual wireless operates two separate antennas, one for each side of the receiver / microphone / transmitter. The W2 is housed in a metal chassis with 2-XLR and 1-1/4in output which mirrors side in the case where you need a 1/4in output. A 1/2 rack-mountable design, the system come with a rack-kit and extension cables to place in a standard rack unit. The extension kit places the antennas on the front of the of the rack case allowing quick removal of the antennas for storage. The antennas disconnect with an BNC locking connector to either the back or front when racked.

Powered by an included power supply is easy to setup. The available 99 channels are changed with with a sync’ing process that sends the signal from the receiver to the transmitters with IR. Easy to change quickly on stage. Use of 5-6 systems simultaneously allows for horn style bands of all types to use an Evno belt-pack free wireless system. The W2 can also be used along side the Air and W1 systems and are not only compatible with both but also compatible with the A2, AH, and A4 transmitters. *Dependent on region and availability.

The W2 system is available in the 900-928MHz range for the United States, Brazil, Canada, and other free frequency regions. **see chart below for more information.

The W2 system is shipped with a rack-kit, antennas, power supply, extension cables, and the A1 transmitter to combine with an Evno microphone. The system in combination with an Evno microphone produces the most natural reproduction of an acoustic instrument on the market. For dual operation, a 2nd transmitter and microphone must be selected and purchased as desired and needed.

EVNO W2 components:

Dual receiver

Rack mount kit

2 BNC antennas

Power supply

User guide

EVNO A1 wireless clip-on instrument microphone transmitter

902-928MHz Countries of operation:

Australia (915-928MHz)

Brazil (902-907, 915-927.75MHz)

Canada

Columbia

Costa Rica

Dominican Republic

Ecuador

Guyana

Hong Kong (923-925MHz)

Indonesia (923-925MHz)

Mexico

New Zealand (915-928Mhz)

Paraguay

Peru

Puerto Rico

South Korea (925-928)

Venezuela

United States of America

RECEIVER:

Frequency Range: 902-928MHz

Receive Sensitivity: -110dBm (sinad ≥30dB)

Signal/Noise Ratio: >105dB

Power Supply: DC12V/ 500mA

Audio Output: 1-XLR, 1- 1/4in

Antenna: Diversity, Detachable

TRANSMITTER:

Frequency Range: 902-928MHz

RF Power: 10mW

Microphone Type: Condenser

Directivity：Cardioid

Deviation: ±48KHz

Antenna: 1/4 wave Length wire type

Battery Voltage: 1.5V (1x1.5V AA Battery)

Power Consumption: 14 hours, battery-dependent

SYSTEM SPECIFICATION:

Comprehensive Performance

Frequency Range: 902-928MHz

Modulation Mode: FM

Dynamic Range: >100dB

Frequency Response: 60Hz-17KHz±3dB

Total Harmonic Distortion: <0.5% at 1KHz

Signal/Noise Ratio: ≥108dB

Distance: Up to 500 feet / 150 m
$549.00
$689.00

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

Can I use the microphone wireless?

All Evno microphone packages are designed to be compatible with wireless setups. While each package includes specific components tailored to the chosen setup, the microphone itself is versatile and can be seamlessly integrated with any configuration, including wireless.

Can I use my Evno microphone with other brands of wireless?

Yes, EVNO microphones are designed to be versatile and compatible with various other popular wireless systems, including those from Shure, Sennheiser, AKG, and McCormick. To ensure seamless integration, you will need the correct adapter cable for each brand.

What is the best EVNO wireless setup?

When selecting the best wireless setup from EVNO Microphone Systems, it's essential to consider your specific needs and performance requirements. EVNO offers three distinct wireless options, each catering to different scenarios while maintaining top-notch sound quality across the board.

W1 - True Diversity

W2 - Dual Wireless

Air - Perfect travel size and quick and easy setups.



Please see our education page for more information.

What Is Phantom power?

Phantom power is direct current (DC) electric power that is applied equally to both signal wires of a balanced microphone cable. Phantom power supplies are most often built into mixing consoles and microphone preamps. The purpose of Phantom power is to supply 48 volts of current to microphones that have built-in active circuitry over the same cable that is used to send the microphone’s signal back to the mixer or preamp. Since there is no visible power supply unit (like those common with tube microphones) the term Phantom power is used.

Do you offer a belt pack style transmitter with a volume control?

Yes, Evno offers the A2 belt pack transmitter for musicians who prefer an on-body transmitter. The A2 includes a convenient volume control, allowing players to adjust their sound levels effortlessly.

Do you have a hand held wireless microphone?

Yes, Evno offers the AH handheld microphone which sync’s to the W1, W2, and Air receivers.  The most common setup would be to combine the AH with W2 Dual receiver to have both a wireless horn microphone and hand held active at the same time.

Where do I order an Evno Microphone?

Evno Microphones are available at our growing number of dealers. The dealer can assist you with your buying needs. See current dealers page for more information.  If a dealer does not have stock, you can order directly on our website.  For a list of distributors and dealers outside of the USA, please also see the dealers page.
See All FAQs

Can't find an answer to your question?

Call or txt message us at 973-975-9917 or use our contact form to send an email.
