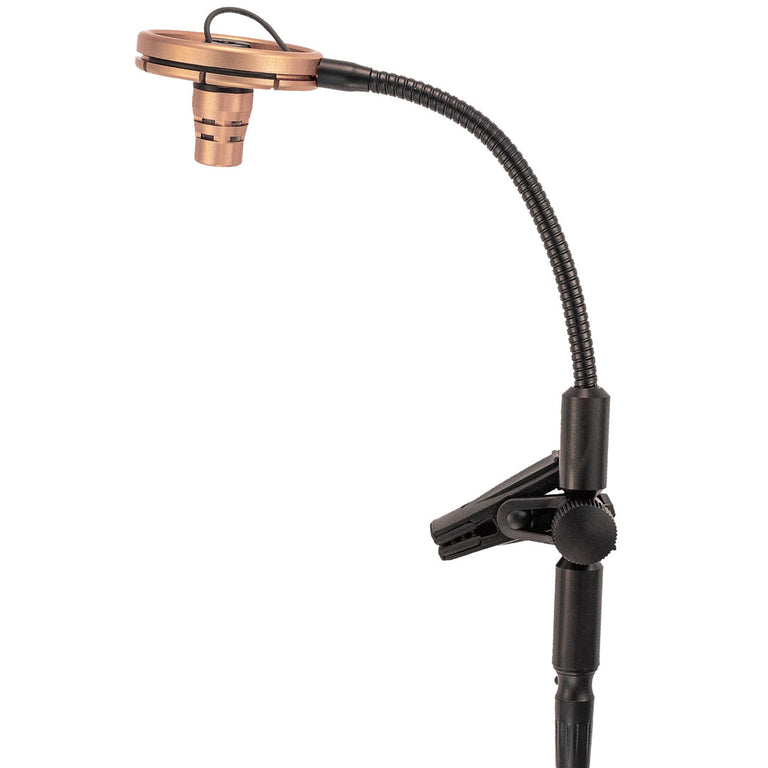

Evno TBX-Air Compact Wireless Trombone Microphone (Complete Wireless System)

Designed for Trombone and Low Brass

$799.00
Save $0.00

The Evno TBX-Air wireless trombone and low brass microphone system is designed and manufactured by hand in the USA. The microphone is designed specifically for trombone and low brass to produce the most natural reproduction of sound possible while allowing for the most gain before feedback.  The Evno Air Wireless System offers a complete package for musicians seeking a portable, high-quality wireless solution for their Evno Microphone in a compact setup.  The TBX system includes a high SPL tolerance suited for a stronger level of output that a brass instrument can produce.



The TBX is the perfect choice from solo performance settings, principal soloist’s in all genres, to high energy horn section bands of all styles.  The system can be used in low to high volume applications without the worry of saturating the element due to volume or high end feedback from surrounding instruments.  The newly designed clamp allows for perfect placement on the bell of the trombone or any flanged bell brass instrument by putting the head of the microphone at the perfect axis point without any spin or twist to off set the microphone from the instrument. It is easy to clamp on and take off the bell with the Evno Swivel spring loaded clamp while always being attached at the perfect height. The setup can be moved quickly from one horn to another.  The TBX gooseneck, designed in the USA, holds position as desired while being lightweight in design.  The microphone itself is built with perfect venting as well as a highly attractive machining process creating a beautiful look while allowing the frequencies of the instrument to fully be captured by the microphone itself.  Suspended in a standard microphone variable suspension of 7 points, the microphone allows for simple and easy replacements of the O rings as needed. The microphone body is terminated with a 3 pin mini XLR connection which is used for both wired and wireless connections.


The Air is a 99 channel system, the channels are changed via a sync process that sends the channel change from the receiver to the transmitter and can be changed in seconds as needed.  Compatible with A1, A2, AH, and A4 transmitters *dependent on region and availability.


The Air system is shipped with an aluminum carrying case for protection however is small enough to pack in a horn case or carry-on for ease of travel.  The system in combination with an Evno microphone produces the most natural reproduction of an acoustic instrument on the market.


The system includes all necessary components to ensure a seamless and reliable performance experience.

The complete Evno TBX-Air setup includes the Evno TBX microphone, Evno Swivel Clamp, Air Wireless receiver, A1 transmitter, power supply and rack kit.

  • Complete Wireless System

    Comes with Air Wireless System

  • Compatibility

    At any time add the PS95 for wired use or use with other major band wireless

  • Bell Mounted

    Includes the Swivel Clamp

  • Trombone Microphone

    1st Choice recommendation.

Quantity
  • Main Features

  • Description

  • Specs

  • Included

  • Setup and Configuration

  • Frequency by

    Region

Evno Air Wireless System
≈ Compact size receiver for easy travel
≈ Aluminum case with foam packing included
≈ Receiver powered with included 9V power supply or 2 - AA batteries
≈ Perfect for pedal board mounting or next to you on stage
≈ UHF with 100 selectable channels - region dependent
≈ 1/4in (6.3mm) output
≈ Diversity antenna system with two built in antennas
≈ 80-meter (262ft) Range
≈ IR Sync from receiver for quick channel changes
≈ Air and A1 transmitter compatible with W1 and W2 receivers (region dependent)
≈ Compatible with A1, A2, A4, & AH transmitters
≈ LCD Display shows frequency, audio, and RF signals

Description

The Evno Air is a compact yet powerful professional wireless system, perfect for travel. Complete with 1/4 inch output ideal for microphone inputs and D.I. boxes.  The Air system is ideal for quick setups and travel while maintaining a high sonic quality in combination with an Evno designed microphone.  Using the same technology as the W1 and W2 systems the Air is Evno’s compact version.  Folding antennas and a small footprint allow for portability in a compact setup.  Powered by a provided 9V power supply the system also offers a battery option for power.  Using 2 (AA) batteries in the receiver powers the system for 4 hours of continuous use in situations where the power is not available making it possible to use the system in remote locations as needed.


The Air system is available in the 900-928MHz range for the United States, Brazil, Canada, and other free frequency regions.



The Air is a 99 channel system, the channels are changed via a sync process that sends the channel change from the receiver to the transmitter and can be changed in seconds as needed.  Compatible with A1, A2, AH, and A4 transmitters *dependent on region and availability.



The Air system is shipped with an aluminum carrying case for protection however is small enough to pack in a horn case or carry-on for ease of travel.  The system in combination with an Evno microphone produces the most natural reproduction of an acoustic instrument on the market.



The Evno Air Wireless System offers a complete package for musicians seeking a portable, high-quality wireless solution for their Evno Microphone. The system includes all necessary components to ensure a seamless and reliable performance experience.

Receiver:
    •    Frequency Range: 902-928 MHz
    •    Receive Sensitivity: -110 dBm (sinad ≥30 dB)
    •    Signal/Noise Ratio: >105 dB
    •    Power Supply: DC 12V / 500 mA
    •    Audio Output: 1- 1/4 inch
    •    Antenna:  Detachable, Dual

Transmitter:
    •    Frequency Range: 902-928 MHz
    •    RF Power: 10 mW
    •    Microphone Type: Condenser
    •    Directivity: Cardioid
    •    Deviation: ±48 KHz
    •    Antenna: 1/4 wave length wire type
    •    Battery Voltage: 1.5V (1x1.5V AA Battery)
    •    Power Consumption: 14 hours, battery-dependent

SYSTEM SPECIFICATION:

  • Comprehensive Performance
  • Frequency Range: 902-928MHz, 823-832Mhz
  • Modulation Mode: FM
  • Dynamic Range: >100dB
  • Frequency Response: 60Hz-17KHz±3dB
  • Total Harmonic Distortion: <0.5% at 1KHz
  • Signal/Noise Ratio: ≥108dB
  • Distance: Up to 250 feet / 80 m


Each package includes:
    •    Instrument-specific microphone: Tailored to the acoustic properties of the specific instrument.
    •    Complete Air Wireless System: Ensures high-quality wireless audio, with Diversity receiver, and attached antennas

  • Air Compact Receiver: For robust and reliable audio reception.
  • 1/4 Inch (6.35 mm) Audio Cable
  • Power Adaptor: Ensures consistent power supply. Optionally powered by 2 (AA) batteries.
  • User Guide: Comprehensive instructions for setup and use.
  • Rugged Aluminum Carrying Case: Durable and protective for easy transport.
  • Evno A1 Wireless Clip-On Instrument Microphone Transmitter: High-quality audio transmission belt pack-free design.

Setup and Configuration
    •    Power Supply: Includes a 9V power supply for easy setup.
    •    Channel Selection: Features 99 available channels that can be quickly changed using an IR sync process, allowing for rapid adjustments on stage.
    •    Compatibility: Can be used with up to 5-6 systems simultaneously, making it ideal for horn style bands. Compatible with other Evno systems (Air, W2) and transmitters (A2, AH, A4), depending on region and availability.
    •    Frequency Ranges:
    ◦    900-928 MHz: For the United States, Brazil, Canada, and other free frequency regions. *See additional information for all regions including South America.

902-928MHz Countries of operation:

Australia (915-928MHz)
Brazil (902-907, 915-927.75MHz)
Canada
Columbia
Costa Rica
Dominican Republic
Ecuador
Guyana
Hong Kong (923-925MHz)
Indonesia (923-925MHz)
Mexico
New Zealand (915-928Mhz)
Paraguay
Peru
Puerto Rico
South Korea (925-928)
Venezuela
United States of America

Craftsmanship and Features

Evno Air Receiver

Compact yet powerful professional wireless system, perfect for travel. Complete with 1/4 inch output ideal for microphone inputs and D.I. boxes.  The Air system is ideal for quick setups and travel while maintaining a high sonic quality in combination with an Evno designed microphone.  Using the same technology as the W1 and W2 systems the Air is Evno’s compact version.  Folding antennas and a small footprint allow for portability in a compact setup.  Powered by a provided 9V power supply the system also offers a battery option for power.  Using 2 (AA) batteries in the receiver powers the system for 4 hours of continuous use in situations where the power is not available making it possible to use the system in remote locations as needed.

Evno A1 Transmitter

Beltpack free transmitter clips to an Evno Microphone.

Air Controls

Evno Air Case

Included with an Evno Air Wireless System
