Evno PNX1 Piano Microphone
Evno PNX1 Piano Microphone
Evno PNX1 Piano Microphone
Evno PNX1 Piano Microphone
Evno PNX1 Piano Microphone
Evno PNX1 Piano Microphone

Evno PNX1 Piano Microphone

Designed for Acoustic Piano
$479.00
$599.00
Save $120.00

The EVNO PNX1 piano microphone system is designed and manufactured by hand in the USA.  The microphone setup is designed to be a single omni microphone system for grand and upright pianos either placed between the sound holes of a grand piano or inside and on the bottom panel of an upright piano.  Designed as a mono solution for mic’ing a piano in a live performance setting, the system is also known to be used to enhanced and add variety in a studio setting.



Designed to reproduce the sound of the particular instrument as natural or without any coloration as possible.  The PNX1 is engineered to be EQ’d flat.  The microphone provides plenty of gain before feedback while maintaining the natural sound of each piano.  The microphone is suspended in an 8 point isolation shock mount design which helps to reduce any vibration and handling noise.  The microphone is mounted to a Evno / USA made gooseneck which allows for easy further positioning once the perfect placement is determined by the magnetic clamp.



The setup is quick and easy which eliminates the need for bulky microphone stands which can take up space on stage.  The microphone is secured by placing the gooseneck or the microphone body into the Evno Piano Clamp (Evno PNX1-CL) creating two mounting / placement options.  The placement of the microphone in two various options allow for tighter installs or the ability to stretch the gooseneck further if desired.  The microphone is suspended in a suspension ring which reduces vibration from the instrument and the gooseneck while allowing for the microphone to reach beyond the footprint of the magnetic mount attached to the piano.



The PNX1 connects via an Evno Ta3-Ta4 Cable connecting directly to an Evno PS95 power supply which is powered by either phantom power or 1 AA battery.  The PS95 includes a low-cut filter and can be completely shut off while using a AA battery.  While using phantom power, the microphone can be shut off by turning off phantom power.  If planning to leave the microphone system in the piano for a length of time, the XLR cable from the mixing console and Evno power supply could be left inside the piano as long as your powering the system with phantom power for an upright piano and / or phantom or battery for a grand.  If powering with AA battery, the microphone should be shut off after use to save battery life.



The PNX1 is the perfect setup for churches and concert venues that may leave the piano in one spot for a length of time or for the sound engineer or pianist that moves the system from one piano or stage to another.



The complete setup includes an Evno branded leather microphone bag, cable, PS95 power supply / preamp, magnetic clamp(PNX1-CL), and one double position microphone piano specific Evno microphone.

  • Hardwired setup

    Includes Ta3-Ta4 Mini Xlr cable for included preamp

  • Powered by PS95

    Power by Phantom power of (1) AA battery when phantom is not available

  • Mounts Inside Piano

    Includes PNX1-CL Magnetic clamp

  • Acoustic Piano

    For use on a grand and upright pianos
Quantity

  • Main Features

  • Description

  • Specs

  • Included

Evno PNX1 Acoustic Piano Microphone System
≈ Designed specific for Acoustic Piano
≈ Sturdy aluminum magnetic clamp placed inside piano
≈ Single microphone design captures the full range of the piano
≈ Ideal for live application, however can be used for recording as well
≈ Microphone mounts to magnetic clamp by the microphone body or gooseneck for a variety of placements
≈ Maintains the natural sound of the instrument
≈ Includes the PNX1-CL Clamp
≈ Ideal for all genres of music
≈ 6.5” Flex-stay Gooseneck holds position as desired
≈ Powered by PS95 for hardwired connection with phantom power or (1) AA battery
≈ Includes Evno Leather carrying bag in a small transportable package

Description

The EVNO PNX1 piano microphone system is designed and manufactured by hand in the USA.  The microphone setup is designed to be a single omni microphone system for grand and upright pianos either placed between the sound holes of a grand piano or inside and on the bottom panel of an upright piano.  Designed as a mono solution for mic’ing a piano in a live performance setting, the system is also known to be used to enhanced and add variety in a studio setting.  Designed to reproduce the sound of the particular instrument as natural or without any coloration as possible.  The PNX1 is engineered to be EQ’d flat.  The microphone provides plenty of gain before feedback while maintaining the natural sound of each piano.  The microphone is suspended in an 8 point isolation shock mount design which helps to reduce any vibration and handling noise.  The microphone is mounted to a Evno / USA made gooseneck which allows for easy further positioning once the perfect placement is determined by the magnetic clamp.



The setup is quick and easy which eliminates the need for bulky microphone stands which can take up space on stage.  The microphone is secured by placing the gooseneck or the microphone body into the Evno Piano Clamp (Evno PNX1-CL) creating two mounting / placement options.  The placement of the microphone in two various options allow for tighter installs or the ability to stretch the gooseneck further if desired.  The microphone is suspended in a suspension ring which reduces vibration from the instrument and the gooseneck while allowing for the microphone to reach beyond the footprint of the magnetic mount attached to the piano.



The PNX1 connects via an Evno Ta3-Ta4 Cable connecting directly to an Evno PS95 power supply which is powered by either phantom power or 1 AA battery.  The PS95 includes a low-cut filter and can be completely shut off while using a AA battery.  While using phantom power, the microphone can be shut off by turning off phantom power.  If planning to leave the microphone system in the piano for a length of time, the XLR cable from the mixing console and Evno power supply could be left inside the piano as long as your powering the system with phantom power for an upright piano and / or phantom or battery for a grand.  If powering with AA battery, the microphone should be shut off after use to save battery life.

The PNX1 is the perfect setup for churches and concert venues that may leave the piano in one spot for a length of time or for the sound engineer or pianist that moves the system from one piano or stage to another.



The complete setup includes an Evno branded leather microphone bag, cable, PS95 power supply / preamp, magnetic clamp(PNX1-CL), and one double position microphone piano specific Evno microphone.

Frequency Response

Polar Pattern

Directional Characteristic        Omni Directional
Sensitivity                -44dB ± 3dB at 1kHz (0dB = 1V/Pa)
Impedance                1.0kΩ ± 30% at 1kHz
Signal to Noise Ratio            70dB Typ. At 1kHz
Operating Voltage            6V (2.0V - 10.0V)
Max Input Sound Pressure         139dB.
Operating Temperature        -10°C ~ +60°C
Storage Temperature            -20°C ~ +70°C

The complete Evno PNX1 setup includes:

  • Evno PS95 power supply / preamp
  • Evno PNX1-CL Clamp

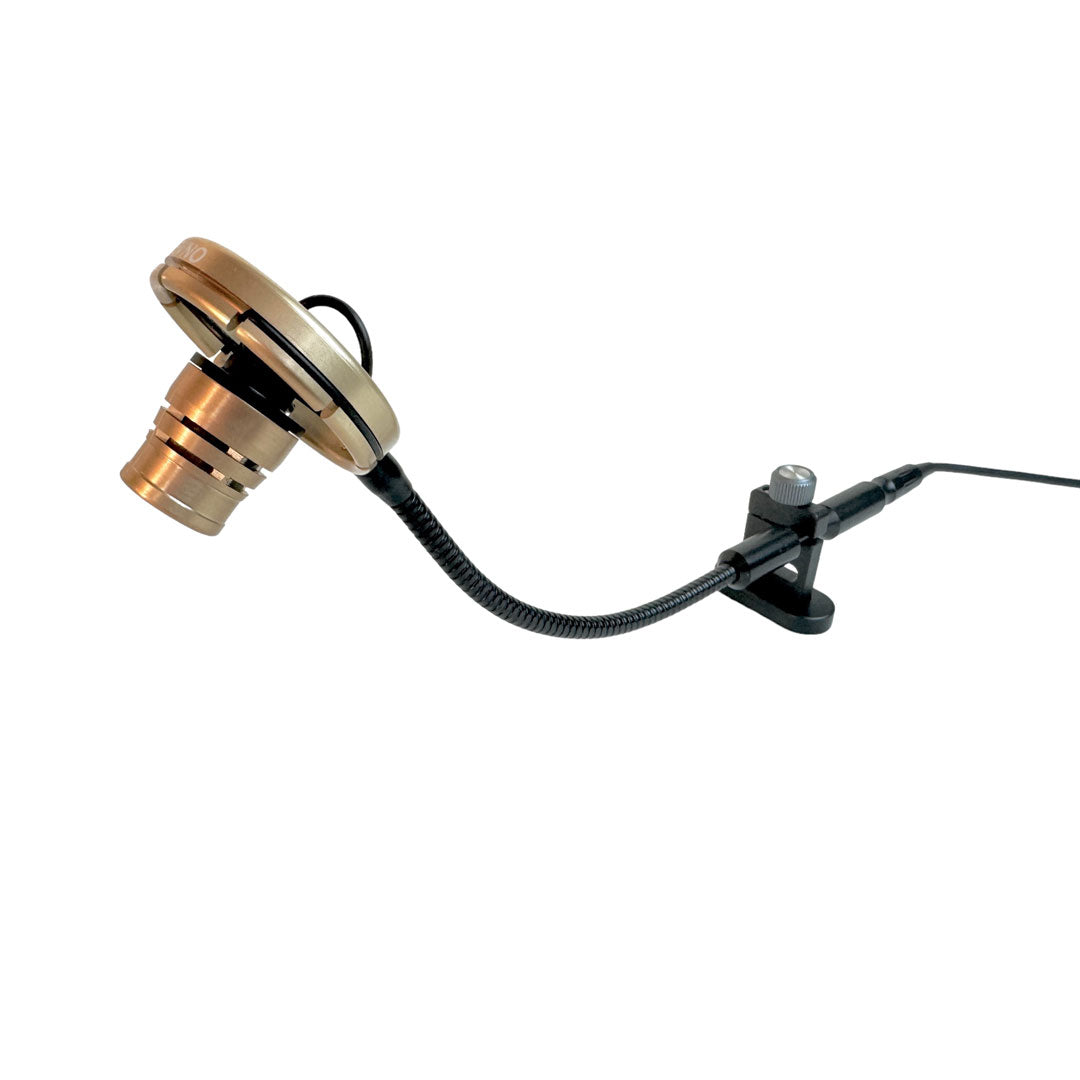

  • PNX1 Microphone
  • Leather Carrying bag
  • Cable (Ta4) Connects microphone to PS95 Preamp

**XLR cables to connect from the PS95 power supply to a mixing console not included. A standard XLR / Mic cable is required for hardwired connections.

Craftsmanship and Features

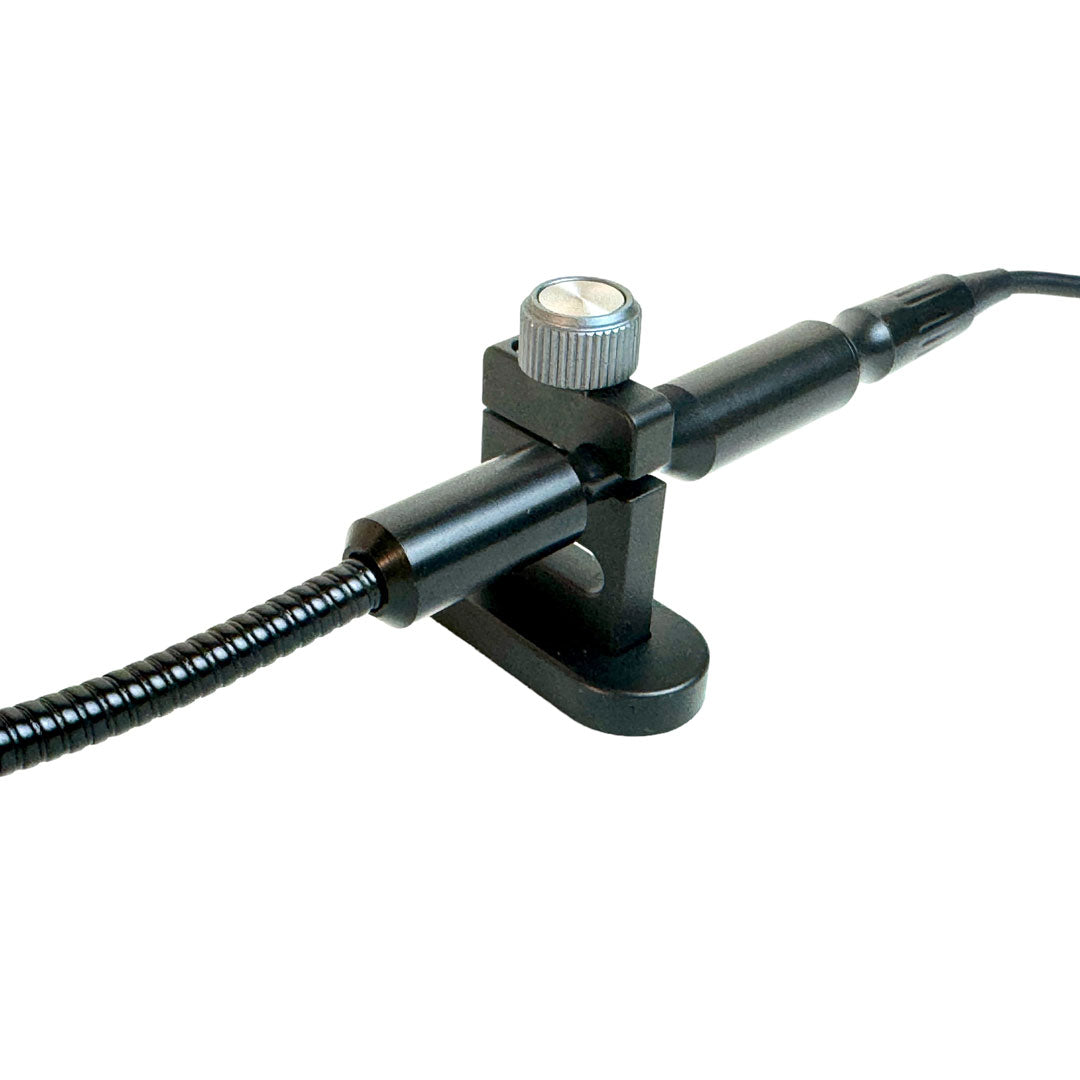

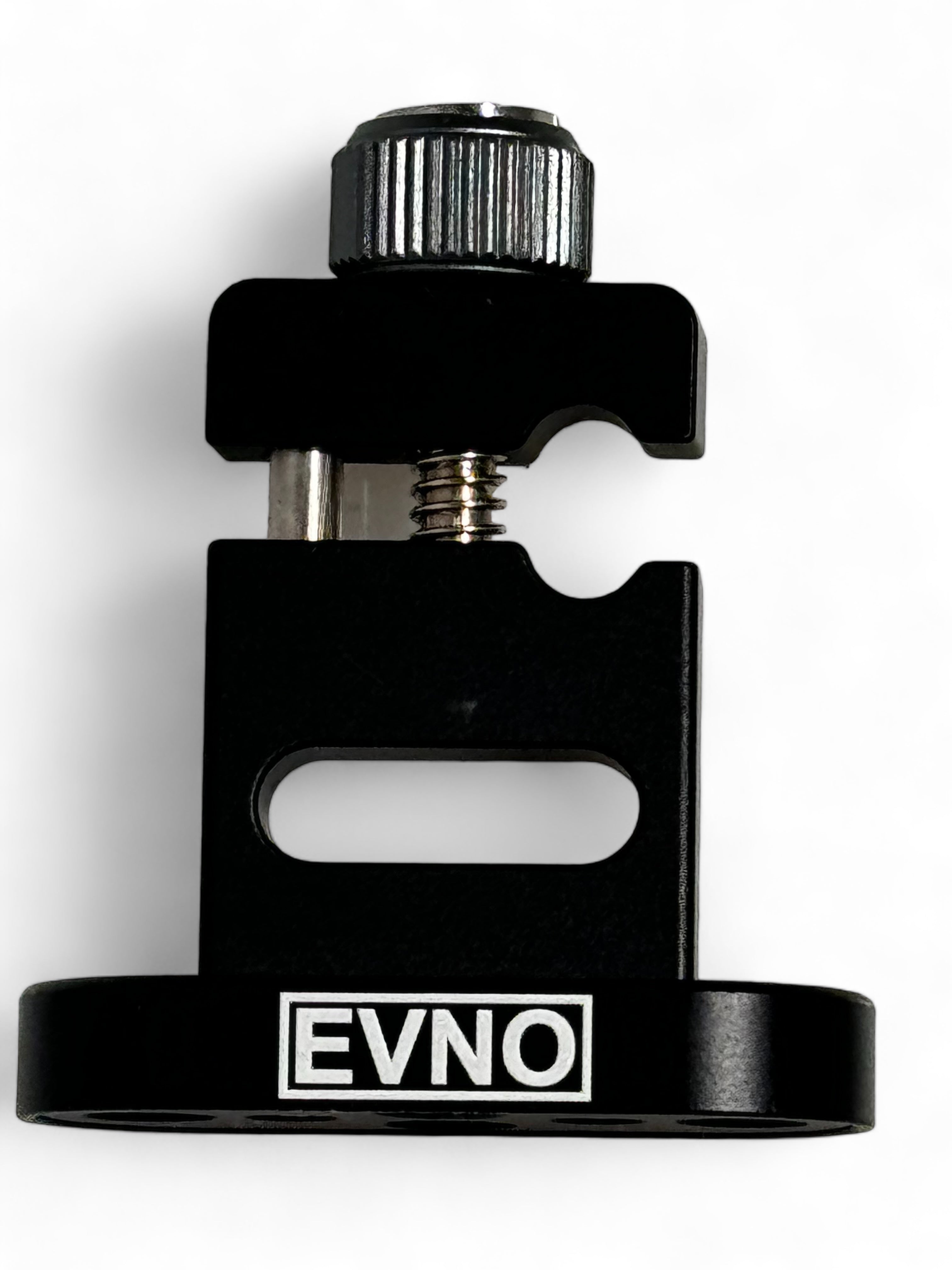

PNX1-CL Clamp

The PNX-CL piano clamp is an extremely simple to use system that attaches to the brass sound board of a piano with a team of four magnets.  The clamp can hold the microphone by either attaching the gooseneck to the clamp OR for extended reaches, attaching the microphone body to the clamp.  A variety of positions can be achieved with this setup to accommodate each individual piano.  A Stay-flex gooseneck allows for additional positioning options as needed.

Flex-Stay Gooseneck
(Made in USA)

5.5” Flex-stay Gooseneck holds position as desired

Powered by PS95 Preamp/power supply

Powered by the PS95 with phantom power or (1) AA Battery. When used wireless, the Evno A1 powers the microphone or other brand transmitters

Made in the USA

All parts are made by hand and assembled in the USA!

Additional Recomendations

EVNO FEATURED ACCESSORIES

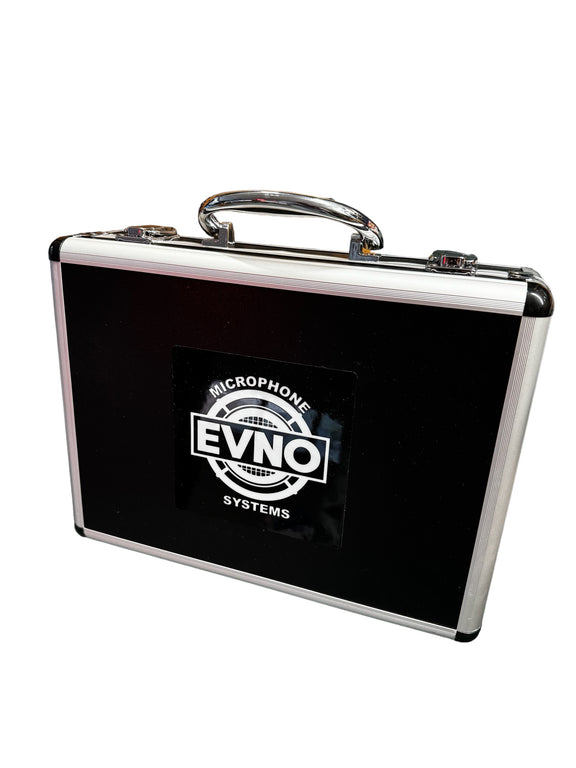

Evno Air Case

Optional hard case



Evno Air Case

Replacement case for Evno AIR System.  Can also be used with all microphones, PS95's, accessories including cables, power supplies, & Evno transmitters.
$39.00
$59.00
Windscreen - Large

Extra Windscreen / Replacement



Windscreen - Large

Evno windscreens are available in two sizes, tailored to fit the two different sizes of capsule shells. These windscreens are included with each microphone but use is optional designed to protect the microphone diaphragm from gusts of air, which can occur in windy conditions. They are particularly beneficial for more aggressive players who produce higher volume levels, as the resulting wind stream can be on occasion be noticed. The windscreens help enhance sound by reducing breath noise. Conversely, for softer players, the breath noise produced on certain instruments may be a deliberate part of their sound, making the use of a windscreen less desirable.


Evno windscreens come in two sizes to accommodate different microphone capsule shells:


WS-LG - Large Size Windscreens

Compatible with the following models:
    •    SX
    •    TPX
    •    TBX
    •    TPX1
    •    TPX2
    •    CLX upper
    •    PN1
    •    PN2
    •    ABX
    •    VBX
    •    SPX2 upper
$11.00
$19.00
Ta4 Cable - (4ft) Evno to Shure & PS95 Power/Preamp

Extra Ta4 Cable / Replacement

Ta4 Cable - (4ft) Evno to Shure & PS95 Power/Preamp

EVNO Microphones are designed to be versatile and compatible with a range of wireless systems through the use of specific cables. It is crucial to use the correct cables to ensure optimal performance and to avoid damaging the microphone capsule.


Evno Microphone Systems makes it possible to use a wireless system from other major brands. Shure, Sennheiser, AKG, and McCormick are all compatible with an Evno microphone. Note: These options operate with a traditional belt pack style transmitter and only an Evno Wireless system offers the belt pack free option.


The optional OR replacement cable is setup for the customer that already owns a wireless system from one of these brands. The Ta4 is also compatible with the PS95 Preamp / power supply for hard wired use.

  • Standard Cable: EVNO TA4
    • Connectors: 3-pin mini XLR (microphone side) to 4-pin mini XLR
      Uses:
    • Connects EVNO microphones to the PS95 preamp/power supply.
    • Connects EVNO microphones to Shure wireless belt packs.
    • Connects EVNO microphones to EVNO A2 wireless belt packs.

      Important Note: This is the standard cable and substitutes should not be used as they could damage the microphone capsule.
$49.00
$79.00

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

Can I use the microphone wireless?

All Evno microphone packages are designed to be compatible with wireless setups. While each package includes specific components tailored to the chosen setup, the microphone itself is versatile and can be seamlessly integrated with any configuration, including wireless.

Can I use my Evno microphone with other brands of wireless?

Yes, EVNO microphones are designed to be versatile and compatible with various other popular wireless systems, including those from Shure, Sennheiser, AKG, and McCormick. To ensure seamless integration, you will need the correct adapter cable for each brand.

What is the best EVNO wireless setup?

When selecting the best wireless setup from EVNO Microphone Systems, it's essential to consider your specific needs and performance requirements. EVNO offers three distinct wireless options, each catering to different scenarios while maintaining top-notch sound quality across the board.

W1 - True Diversity

W2 - Dual Wireless

Air - Perfect travel size and quick and easy setups.



Please see our education page for more information.

What Is Phantom power?

Phantom power is direct current (DC) electric power that is applied equally to both signal wires of a balanced microphone cable. Phantom power supplies are most often built into mixing consoles and microphone preamps. The purpose of Phantom power is to supply 48 volts of current to microphones that have built-in active circuitry over the same cable that is used to send the microphone’s signal back to the mixer or preamp. Since there is no visible power supply unit (like those common with tube microphones) the term Phantom power is used.

Do you offer a belt pack style transmitter with a volume control?

Yes, Evno offers the A2 belt pack transmitter for musicians who prefer an on-body transmitter. The A2 includes a convenient volume control, allowing players to adjust their sound levels effortlessly.

Do you have a hand held wireless microphone?

Yes, Evno offers the AH handheld microphone which sync’s to the W1, W2, and Air receivers.  The most common setup would be to combine the AH with W2 Dual receiver to have both a wireless horn microphone and hand held active at the same time.

Where do I order an Evno Microphone?

Evno Microphones are available at our growing number of dealers. The dealer can assist you with your buying needs. See current dealers page for more information.  If a dealer does not have stock, you can order directly on our website.  For a list of distributors and dealers outside of the USA, please also see the dealers page.
