Evno ACX2 External Double Accordion Microphone
≈ Designed for the right hand of piano, button, or chromatic accordions of all sizes
≈ Double microphone design captures full range of keyboard
≈ Custom frequency response allows Tone Chamber low reeds to cut through
≈ Multiple mounting options include screws (2) OR velcro strap
≈ Available wired or wireless with Clip-on A1 transmitter for a completely belt pack and Wire-Free wireless operation
≈ Compatible with Air, W1, and W2 receivers
≈ Includes 3pin Mini-xlr which connects microphone directly to PS95 power supply or A1 transmitter
≈ ACX clamp installs onto grill of accordion with two small screws
≈ Clamp can stay on instrument for next usage while taking the microphone off
≈ Optional velcro loop system included if pass thru holes for clamp are not available or desired
The EVNO ACX2 external accordion microphone system is designed and manufactured by hand in the USA. The microphone is designed specifically to be used on the right hand of piano, button, and chromatic accordions of all sizes. The double microphone systems allows for the full range of the accordion while a special design circuit allows the lower tones of a tone chambered instrument, which often require more air to produce louder volume levels, to stand out. The microphone will allow you to be heard as you sound without coloration, giving the audience a true representation of the sound of the instrument.
The ACX2 is the perfect choice from solo performance settings, principal soloist’s in all genres, to high energy bands of all styles. From orchestral musicians to jazz, folk, klezmer, and polka the ACX2 will give you a setup where all the nuances of the instrument can be heard. Each genre and player has a different sound and by keeping the microphone flatly EQ’d, you’ll sound like YOU sound without coloration. The system can be used in low to high volume applications without the worry of saturating the element due to volume or high end feedback from surrounding instruments.
The ACX2 microphone is built independent from the clamp which allows removal of the microphone and transmitter if using wireless to be quickly packed away after a performance.

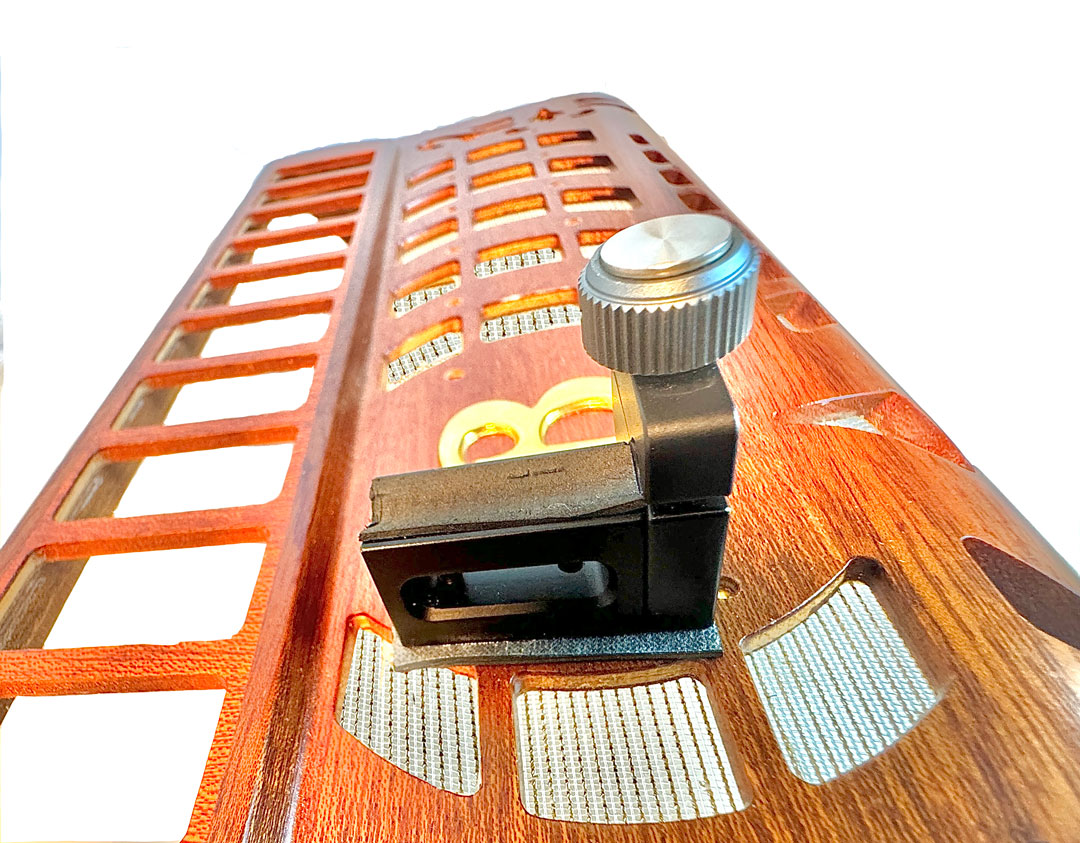

The Evno designed clamp is mounted to the grill of an accordion with several options. The preferred option is by placing two screws through any preexisting holes in the grill. A small hole through the grill cloth maybe necessary. The included screws are small and will screw into the bottom of the clamp while the screw and washer hold the clamp onto the grill from the inside of the accordion. The clamp can be left on the grill after removing the microphone for quick setups in the future. The placement of the clamp would be selected by preference or where openings in the grill would allow attachment. If the grill doesn’t have a useable hole for two screws, an optional velcro strap is included to feed into the grill and back around to the clamp for attachment. Openings on the grill will be needed for this mounting system and it maybe required to cut the grill cloth again for an opening.

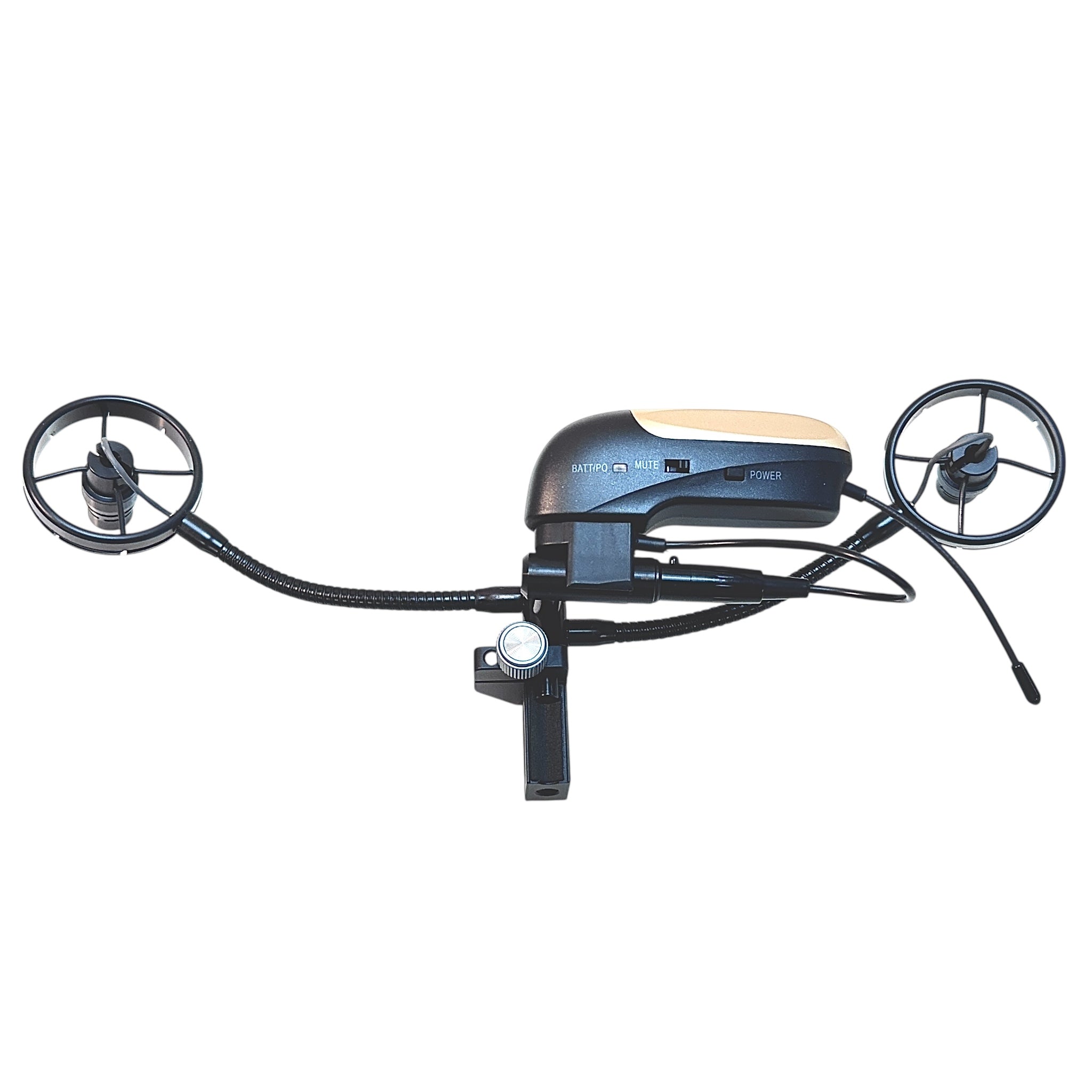

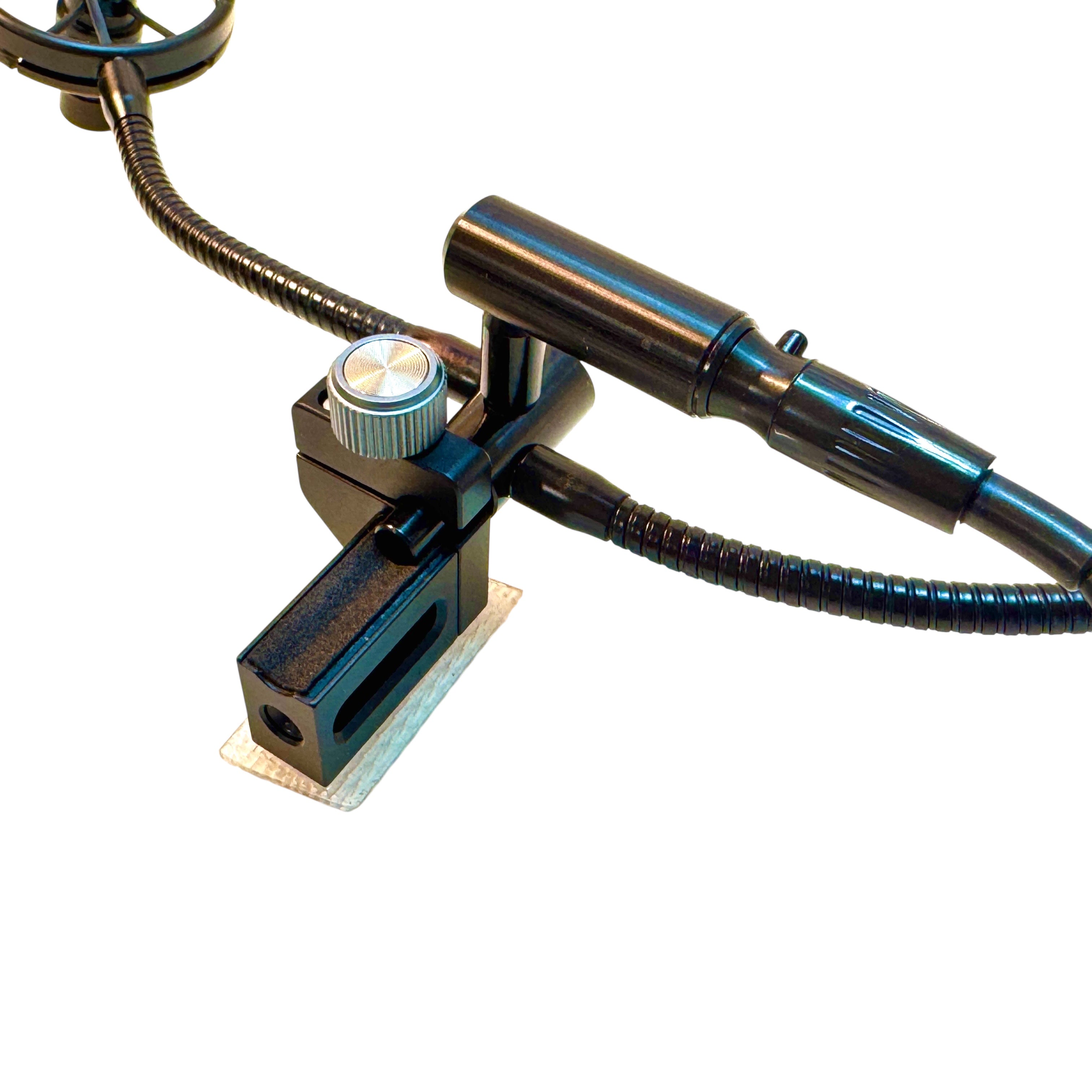

The double flex-stay gooseneck allows movement of the microphones away from the body of the instrument as desired. The microphone is easy to place on and take off the instrument with a screw tightening clamp. The accordion can be set down on its side without disturbance from external jacks of any kind.
The microphone itself is built with perfect venting as well as a highly attractive machining process creating a beautiful look while allowing the frequencies of the instrument to fully be captured by the microphone itself. Suspended in two standard variable 7 point suspensions, the microphone allows for simple and easy replacements of the O rings as needed. The microphone body is terminated with a 3 pin mini XLR connection which is used for both wired and wireless connections.
The microphone system can be used wired or wirelessly. The Evno ACX2 is shipped with the PS95 power supply for wired use while still being adaptable and ready to use with Evno, Shure, AKG, or Sennheiser wireless systems. (AKG and Sennheiser cables ordered separately to mate the microphone with another brand wireless or available in a package with the microphone and cable for customers who already own an Evno, AKG, Shure, or Sennheiser system.) The included cable with the ACX2 system works both with the Evno PS95 phantom power adapter, and Shure wireless transmitters. By-pass the cable to connect to Evno clip-on wireless transmitters. Additional packages include the ACX2 system with Evno Wireless or the ACX2 microphone setup directly for use with Shure, AKG, or Sennheiser wireless systems.
The complete Evno ACX2 setup includes an Evno PS95 power supply / preamp, Evno ACX2-CL Clamp, ACX2 Double Microphone, case, and cable. XLR cables to connect from the PS95 power supply to a mixing console not included. A standard XLR / Mic cable is required.
Compact yet powerful professional wireless system, perfect for travel. Complete with 1/4 inch output ideal for microphone inputs and D.I. boxes. The Air system is ideal for quick setups and travel while maintaining a high sonic quality in combination with an Evno designed microphone. Using the same technology as the W1 and W2 systems the Air is Evno’s compact version. Folding antennas and a small footprint allow for portability in a compact setup. Powered by a provided 9V power supply the system also offers a battery option for power. Using 2 (AA) batteries in the receiver powers the system for 4 hours of continuous use in situations where the power is not available making it possible to use the system in remote locations as needed.
The Air system is available in the 900-928MHz range for the United States, Brazil, Canada, and other free frequency regions while the 823-832Mhz range is setup for most territories in Europe. **see chart below for more information.
The Air is a 99 channel system, the channels are changed via a sync process that sends the channel change from the receiver to the transmitter and can be changed in seconds as needed. Compatible with A1, A2, AH, and A4 transmitters *dependent on region and availability.
The Air system is shipped with an aluminum carrying case for protection however is small enough to pack in a horn case or carry-on for ease of travel. The system in combination with an Evno microphone produces the most natural reproduction of an acoustic instrument on the market.
The Evno Air Wireless System offers a complete package for musicians seeking a portable, high-quality wireless solution for their Evno Microphone. The system includes all necessary components to ensure a seamless and reliable performance experience. Here’s what’s included:
1 Air Compact Receiver: For robust and reliable audio reception.
2 1/4 Inch (6.35 mm) Audio Cable
3 Power Adaptor: Ensures consistent power supply. Optionally powered by 2 (AA) batteries.
4 User Guide: Comprehensive instructions for setup and use.
5 Rugged Aluminum Carrying Case: Durable and protective for easy transport.
6 Evno A1 Wireless Clip-On Instrument Microphone Transmitter: High-quality audio transmission belt pack-free design.
The complete Evno ACX2-Air setup includes:
**XLR cables to connect from the PS95 power supply to a mixing console not included. A standard XLR / Mic cable is required for hardwired connections.
The preferred mounting solution is by utilizing an opening in the grill of the accordion to feed the two screw setup on the bottom of the clamp. In most accordions, an opening in the grill can be found without the need to drill holes. Each accordion grill is different and will require some degree of creative installing to mount to the desired position. An optional velcro loop is provided if holes are not obtainable. With the velcro loop or the screw holes a hole in the grill cloth maybe necessary. Once set in place with the two installing screws, the clamp can be left on the instrument when the microphone is taken off.

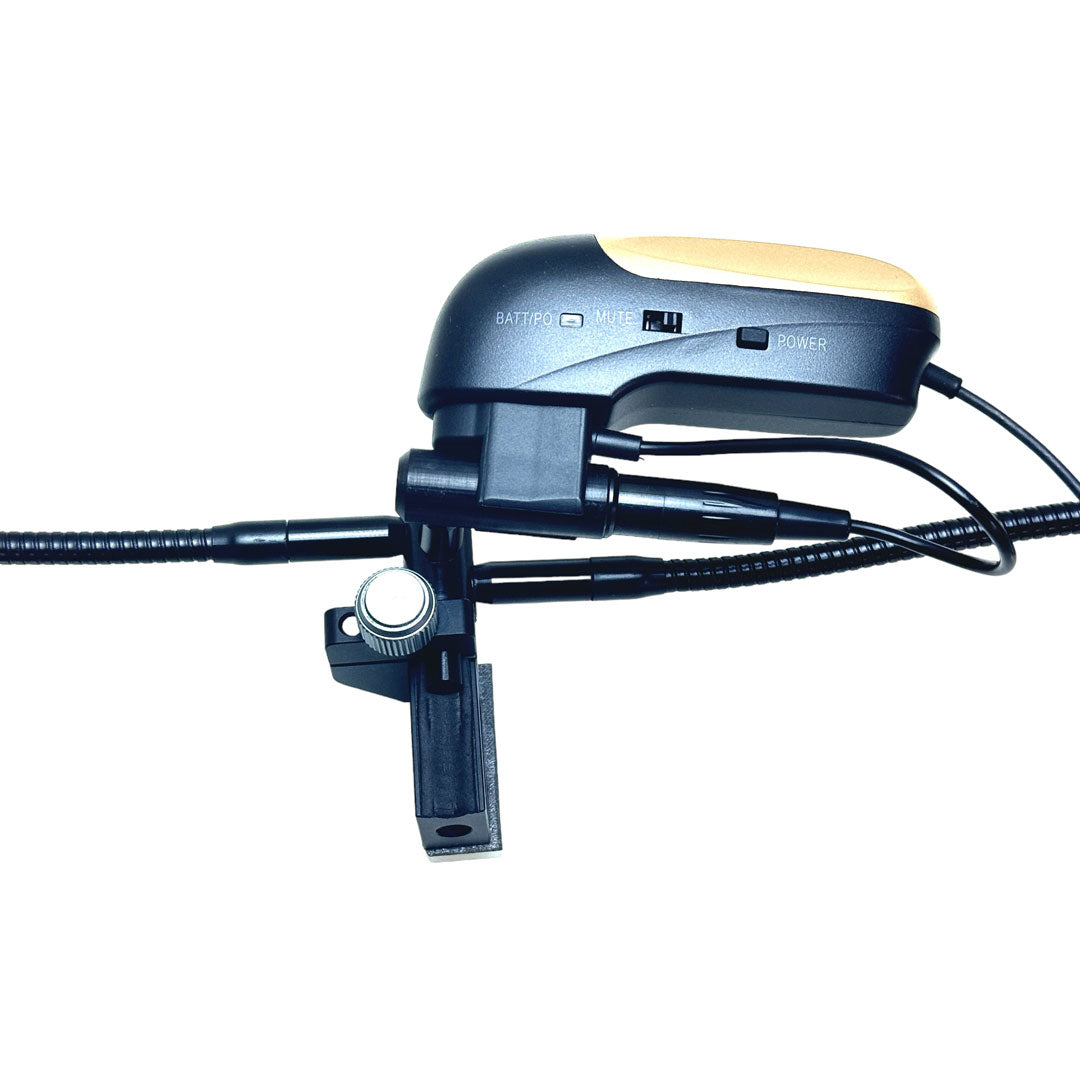

The ACX2 is a wired setup for players not requiring wireless, however the ultimate setup comes when placing the A1 transmitter on the microphone and using Evno Wireless. This creates a COMPLETELY wire-free setup. FOR MORE INFORMATION see these models:
ACX2-AIR (Smallest most portable setup)
ACX2-W1 (Offers true diversity for maximum range)
ACX2-W2 (Offers DUAL wireless operation if a left hand microphone is needed)
5.5” Flex-stay Gooseneck holds position as desired
The ACX2 microphone is compatible with the PS95 which allows hardwired connections. (Non-wireless) The ACX2 can be ordered with or without wireless. The ACX2-Air is a complete compact wireless setup while the ACX2 is hardwired and includes the PS95.
All parts are made by hand and assembled in the USA!
FIND YOUR ANSWERS HERE
FREQUENTLY ASKED QUESTIONS
Can I use the microphone wireless?
All Evno microphone packages are designed to be compatible with wireless setups. While each package includes specific components tailored to the chosen setup, the microphone itself is versatile and can be seamlessly integrated with any configuration, including wireless.
Can I use my Evno microphone with other brands of wireless?
Yes, EVNO microphones are designed to be versatile and compatible with various other popular wireless systems, including those from Shure, Sennheiser, AKG, and McCormick. To ensure seamless integration, you will need the correct adapter cable for each brand.
What is the best EVNO wireless setup?
When selecting the best wireless setup from EVNO Microphone Systems, it's essential to consider your specific needs and performance requirements. EVNO offers three distinct wireless options, each catering to different scenarios while maintaining top-notch sound quality across the board.
W1 - True Diversity
W2 - Dual Wireless
Air - Perfect travel size and quick and easy setups.
Please see our education page for more information.
What Is Phantom power?
Phantom power is direct current (DC) electric power that is applied equally to both signal wires of a balanced microphone cable. Phantom power supplies are most often built into mixing consoles and microphone preamps. The purpose of Phantom power is to supply 48 volts of current to microphones that have built-in active circuitry over the same cable that is used to send the microphone’s signal back to the mixer or preamp. Since there is no visible power supply unit (like those common with tube microphones) the term Phantom power is used.
Do you offer a belt pack style transmitter with a volume control?
Yes, Evno offers the A2 belt pack transmitter for musicians who prefer an on-body transmitter. The A2 includes a convenient volume control, allowing players to adjust their sound levels effortlessly.
Do you have a hand held wireless microphone?
Yes, Evno offers the AH handheld microphone which sync’s to the W1, W2, and Air receivers. The most common setup would be to combine the AH with W2 Dual receiver to have both a wireless horn microphone and hand held active at the same time.
Where do I order an Evno Microphone?
Evno Microphones are available at our growing number of dealers. The dealer can assist you with your buying needs. See current dealers page for more information. If a dealer does not have stock, you can order directly on our website. For a list of distributors and dealers outside of the USA, please also see the dealers page.
