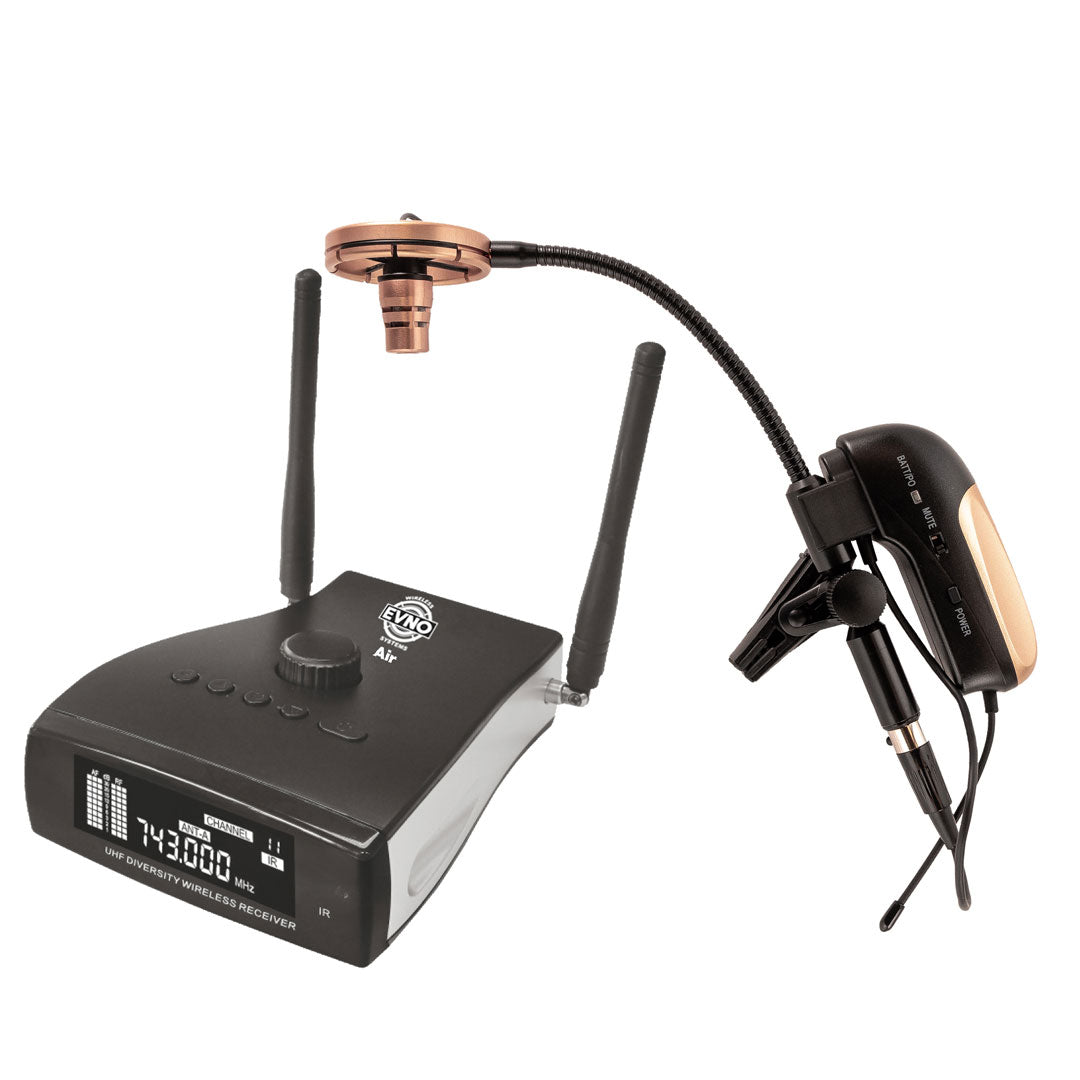

Evno Air Wireless System
≈ Compact size receiver for easy travel
≈ Aluminum case with foam packing included
≈ Receiver powered with included 9V power supply or 2 - AA batteries
≈ Perfect for pedal board mounting or next to you on stage
≈ UHF with 100 selectable channels - region dependent
≈ 1/4in (6.3mm) output
≈ Diversity antenna system with two built in antennas
≈ 80-meter (262ft) Range
≈ IR Sync from receiver for quick channel changes
≈ Air and A1 transmitter compatible with W1 and W2 receivers (region dependent)
≈ Compatible with A1, A2, A4, & AH transmitters
≈ LCD Display shows frequency, audio, and RF signals
The Evno Air is a compact yet powerful professional wireless system, perfect for travel. Complete with 1/4 inch output ideal for microphone inputs and D.I. boxes. The Air system is ideal for quick setups and travel while maintaining a high sonic quality in combination with an Evno designed microphone. Using the same technology as the W1 and W2 systems the Air is Evno’s compact version. Folding antennas and a small footprint allow for portability in a compact setup. Powered by a provided 9V power supply the system also offers a battery option for power. Using 2 (AA) batteries in the receiver powers the system for 4 hours of continuous use in situations where the power is not available making it possible to use the system in remote locations as needed.
The Air system is available in the 900-928MHz range for the United States, Brazil, Canada, and other free frequency regions.
The Air is a 99 channel system, the channels are changed via a sync process that sends the channel change from the receiver to the transmitter and can be changed in seconds as needed. Compatible with A1, A2, AH, and A4 transmitters *dependent on region and availability.
The Air system is shipped with an aluminum carrying case for protection however is small enough to pack in a horn case or carry-on for ease of travel. The system in combination with an Evno microphone produces the most natural reproduction of an acoustic instrument on the market.
The Evno Air Wireless System offers a complete package for musicians seeking a portable, high-quality wireless solution for their Evno Microphone. The system includes all necessary components to ensure a seamless and reliable performance experience.
Receiver:
• Frequency Range: 902-928 MHz
• Receive Sensitivity: -110 dBm (sinad ≥30 dB)
• Signal/Noise Ratio: >105 dB
• Power Supply: DC 12V / 500 mA
• Audio Output: 1- 1/4 inch
• Antenna: Detachable, Dual
Transmitter:
• Frequency Range: 902-928 MHz
• RF Power: 10 mW
• Microphone Type: Condenser
• Directivity: Cardioid
• Deviation: ±48 KHz
• Antenna: 1/4 wave length wire type
• Battery Voltage: 1.5V (1x1.5V AA Battery)
• Power Consumption: 14 hours, battery-dependent
SYSTEM SPECIFICATION:
Each package includes:
• Instrument-specific microphone: Tailored to the acoustic properties of the specific instrument.
• Complete Air Wireless System: Ensures high-quality wireless audio, with Diversity receiver, and attached antennas
Setup and Configuration
• Power Supply: Includes a 9V power supply for easy setup.
• Channel Selection: Features 99 available channels that can be quickly changed using an IR sync process, allowing for rapid adjustments on stage.
• Compatibility: Can be used with up to 5-6 systems simultaneously, making it ideal for horn style bands. Compatible with other Evno systems (Air, W2) and transmitters (A2, AH, A4), depending on region and availability.
• Frequency Ranges:
◦ 900-928 MHz: For the United States, Brazil, Canada, and other free frequency regions. *See additional information for all regions including South America.
902-928MHz Countries of operation:
Australia (915-928MHz)
Brazil (902-907, 915-927.75MHz)
Canada
Columbia
Costa Rica
Dominican Republic
Ecuador
Guyana
Hong Kong (923-925MHz)
Indonesia (923-925MHz)
Mexico
New Zealand (915-928Mhz)
Paraguay
Peru
Puerto Rico
South Korea (925-928)
Venezuela
United States of America
Sistema inalámbrico profesional compacto pero potente, perfecto para viajar. Completo con salida de 1/4 de pulgada ideal para entradas de micrófono y cajas DI. El sistema Air es ideal para configuraciones rápidas y viajes manteniendo una alta calidad de sonido en combinación con un micrófono diseñado por Evno. Utilizando la misma tecnología que los sistemas W1 y W2, Air es la versión compacta de Evno. Las antenas plegables y el tamaño reducido permiten la portabilidad en una configuración compacta. Alimentado por una fuente de alimentación de 9 V incluida, el sistema también ofrece una opción de batería para alimentación. El uso de 2 baterías (AA) en el receptor alimenta el sistema durante 4 horas de uso continuo en situaciones donde no hay energía disponible, lo que permite utilizar el sistema en ubicaciones remotas según sea necesario.

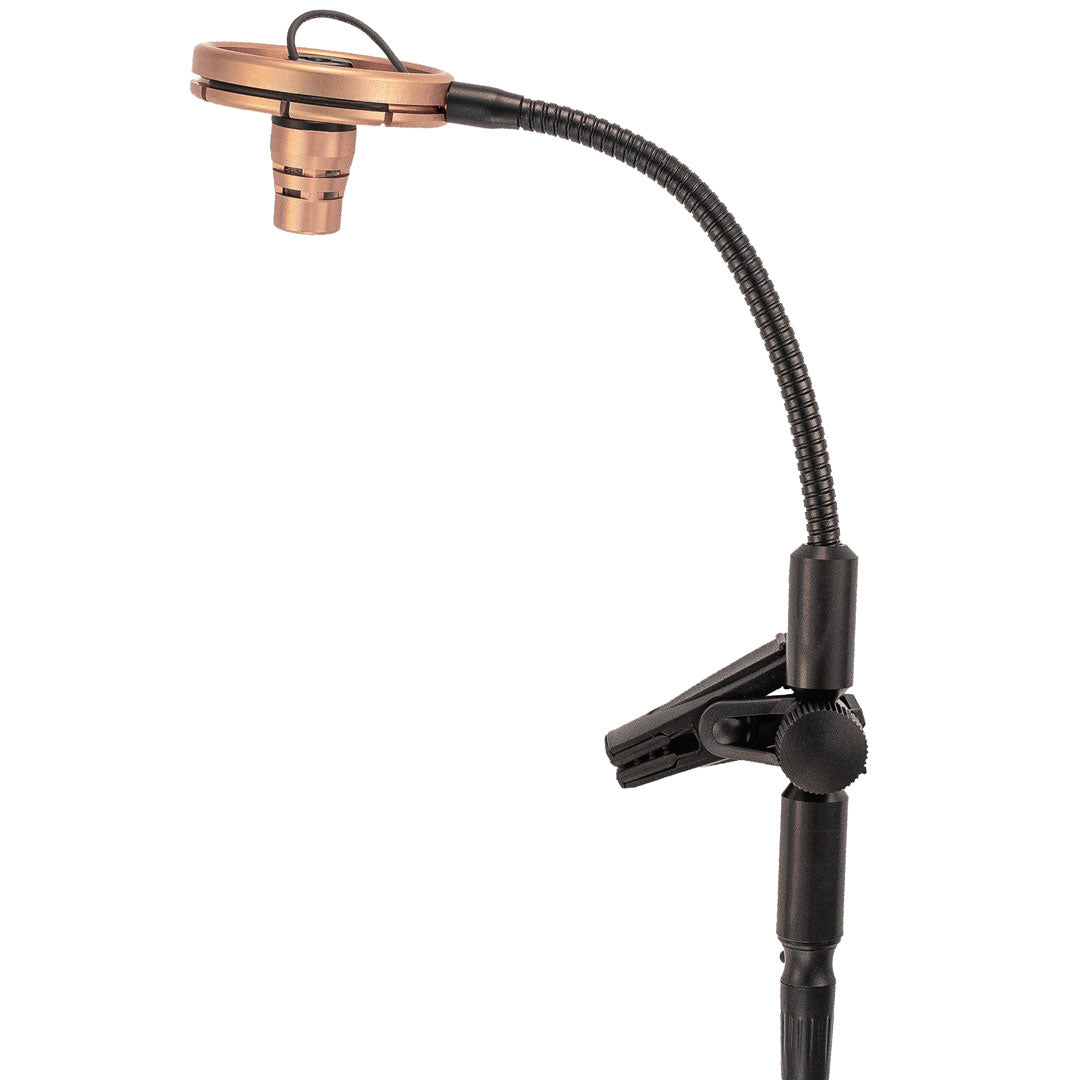

El transmisor sin petaca se engancha a un micrófono Evno.
Incluido con un sistema inalámbrico Evno Air
