• Dual Receiver: This receiver can handle signals from two separate transmitters simultaneously, providing the ability to use two microphones at the same time.
• Range: Offers a maximum distance of approximately 100 meters, making it suitable for large venues and stages.
• Metal Chassis: Durable and robust design with a 2-XLR and 1-1/4 inch output.
• Rack-Mountable: 1/2 rack-mountable design with a rack-kit and extension cables for standard rack unit placement. Antennas can be positioned on the front of the rack case for easy access and removal.

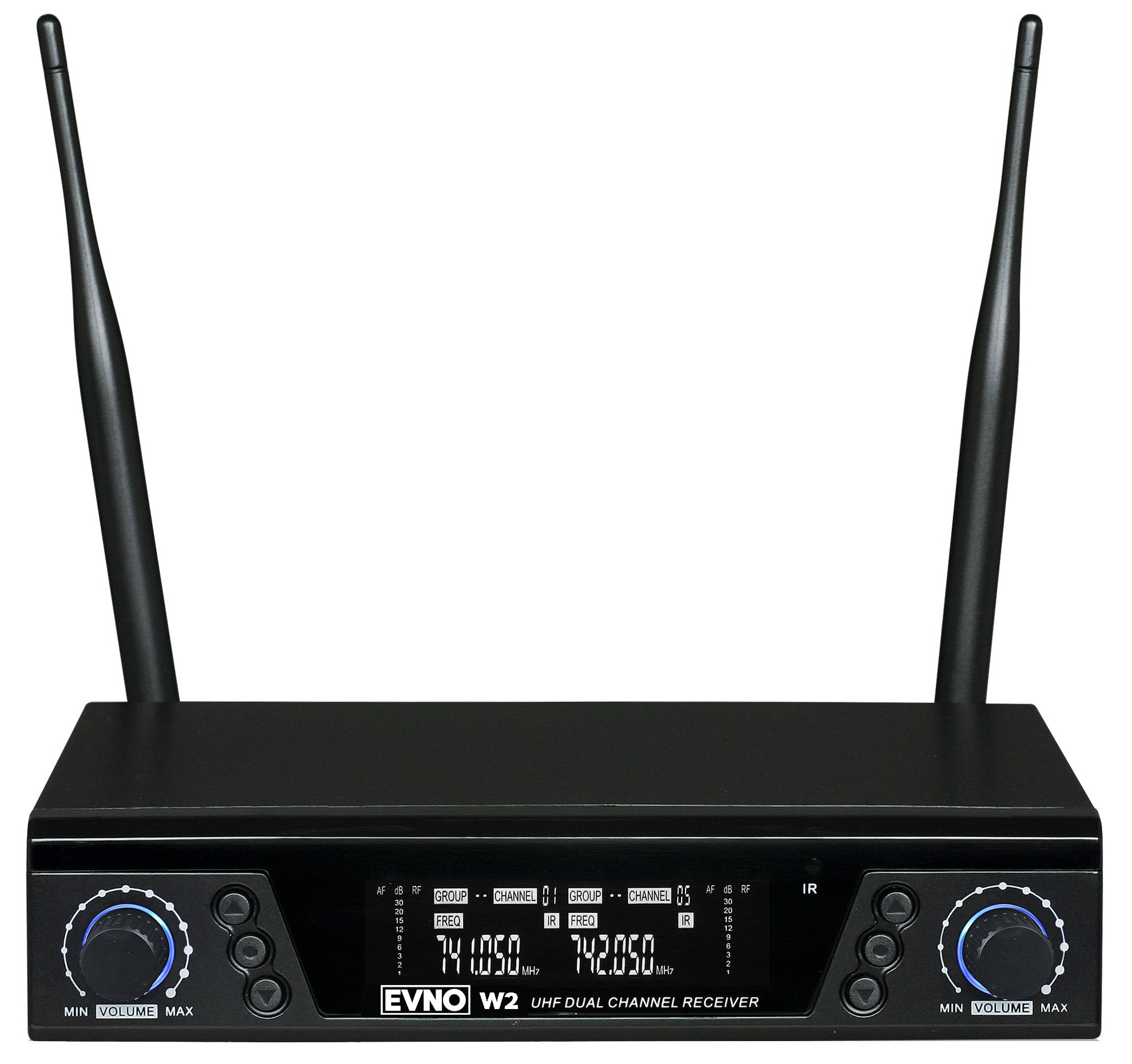

The Evno W2 is a dual wireless system specifically designed to accommodate two Evno microphones active at the same time. This allows for the player to use any combination of Evno microphones wireless at the same. A flute, clarinet, or saxophone etc, can both be active to use at the same time depending on what your particular needs maybe. Independent (2) XLR outputs offer separate control of each microphone / transmitter for greater control of EQ and volume over each channel. The W2 offers a Diversity antenna system which provides a distance at about 100meters.
The Evno W2 dual wireless operates two separate antennas, one for each side of the receiver / microphone / transmitter. The W2 is housed in a metal chassis with 2-XLR and 1-1/4in output which mirrors side in the case where you need a 1/4in output. A 1/2 rack-mountable design, the system come with a rack-kit and extension cables to place in a standard rack unit. The extension kit places the antennas on the front of the of the rack case allowing quick removal of the antennas for storage. The antennas disconnect with an BNC locking connector to either the back or front when racked.
Powered by an included power supply is easy to setup. The available 99 channels are changed with with a sync’ing process that sends the signal from the receiver to the transmitters with IR. Easy to change quickly on stage. Use of 5-6 systems simultaneously allows for horn style bands of all types to use an Evno belt-pack free wireless system. The W2 can also be used along side the Air and W1 systems and are not only compatible with both but also compatible with the A2, AH, and A4 transmitters. *Dependent on region and availability.
The W2 system is available in the 900-928MHz range for the United States, Brazil, Canada, and other free frequency regions. **see chart below for more information.
The W2 system is shipped with a rack-kit, antennas, power supply, extension cables, and the A1 transmitter to combine with an Evno microphone. The system in combination with an Evno microphone produces the most natural reproduction of an acoustic instrument on the market. For dual operation, a 2nd transmitter and microphone must be selected and purchased as desired and needed.
The Evno W2 Dual Wireless System offers a complete package for musicians seeking a rack mountable, high-quality dual wireless solution for their Evno Microphone. The system includes all necessary components to ensure a seamless and reliable performance experience.
Receiver:
• Frequency Range: 902-928 MHz, 823-832 MHz
• Receive Sensitivity: -110 dBm (sinad ≥30 dB)
• Signal/Noise Ratio: >105 dB
• Power Supply: DC 12V / 500 mA
• Audio Output: 1-XLR, 1-1/4 inch
• Antenna: Diversity, Detachable, Dual
Transmitter:
• Frequency Range: 902-928 MHz
• RF Power: 10 mW
• Microphone Type: Condenser
• Directivity: Cardioid
• Deviation: ±48 KHz
• Antenna: 1/4 wave length wire type
• Battery Voltage: 1.5V (1x1.5V AA Battery)
• Power Consumption: 14 hours, battery-dependent
System Specifications:
• Frequency Range: 902-928 MHz
• Modulation Mode: FM
• Dynamic Range: >100 dB
• Frequency Response: 60 Hz - 17 KHz ± 3 dB
• Total Harmonic Distortion: <0.5% at 1 KHz
• Signal/Noise Ratio: ≥108 dB
• Distance: Up to 500 feet / 150 m
Package Contents
• Microphone
• Evno W2 Dual Wireless System: Complete dual wireless system.
• Rack-Kit: For easy integration into standard rack units.
• Antennas: Includes detachable antennas with BNC locking connectors.
• Power Supply: 12V power supply included.
• Extension Cables: For flexible antenna placement in the front of a rack kit.
• A1 Transmitter: Compatible with Evno microphones, ensuring natural reproduction of acoustic instruments in a clip-on, belt pack-less design.
Setup and Configuration
• Power Supply: Includes a 12V power supply for easy setup.
• Channel Selection: Features 99 available channels that can be quickly changed using an IR sync process, allowing for rapid adjustments on stage.
• Compatibility: Can be used with up to 5-6 systems simultaneously, making it ideal for horn style bands. Compatible with other Evno systems (Air, W2) and transmitters (A2, AH, A4), depending on region and availability.
• Frequency Ranges:
◦ 900-928 MHz: For the United States, Brazil, Canada, and other free frequency regions. *See additional information for all regions including South America.
902-928MHz Countries of operation:
Australia (915-928MHz)
Brazil (902-907, 915-927.75MHz)
Canada
Columbia
Costa Rica
Dominican Republic
Ecuador
Guyana
Hong Kong (923-925MHz)
Indonesia (923-925MHz)
Mexico
New Zealand (915-928Mhz)
Paraguay
Peru
Puerto Rico
South Korea (925-928)
Venezuela
United States of America
The Evno W2 is a dual wireless system specifically designed to accommodate two Evno microphones active at the same time. This allows for the player to use any combination of Evno microphones wireless at the same. A flute, clarinet, or saxophone etc, can both be active to use at the same time depending on what your particular needs maybe. Independent (2) XLR outputs offer separate control of each microphone / transmitter for greater control of EQ and volume over each channel. The W2 offers a Diversity antenna system which provides a distance at about 100meters.
Beltpack free transmitter clips to an Evno Microphone.
The SX-CL is a spring loaded / double reinforcement clamp for flanged bell’d instruments. Comes stock with SX, SPX1, and SPX2 systems. The clamp is spring loaded which grips to the flange of a bell and offers a reinforcement screw to tighten for no movement. Used for alto, tenor, and baritone saxophones with the SX microphones, and the SPX 1 for single mic mounting of a soprano saxophone microphone. When used with the SPX2 the clamp position is reversed to accommodate the double soprano microphone. Made out or anodized aluminum the jaw of the clamp fits perfectly into the flanged portion of a bell style instrument such as saxophone, or any brass instrument like tuba, trombone, trumpet, and flugelhorn. The spring loaded system allows for quick and easy movement between horns without the need for the reinforcement screw.
All parts are made by hand and assembled in the USA!
Additional Recomendations
FIND YOUR ANSWERS HERE
FREQUENTLY ASKED QUESTIONS
Can I use the microphone wireless?
All Evno microphone packages are designed to be compatible with wireless setups. While each package includes specific components tailored to the chosen setup, the microphone itself is versatile and can be seamlessly integrated with any configuration, including wireless.
Can I use my Evno microphone with other brands of wireless?
Yes, EVNO microphones are designed to be versatile and compatible with various other popular wireless systems, including those from Shure, Sennheiser, AKG, and McCormick. To ensure seamless integration, you will need the correct adapter cable for each brand.
What is the best EVNO wireless setup?
When selecting the best wireless setup from EVNO Microphone Systems, it's essential to consider your specific needs and performance requirements. EVNO offers three distinct wireless options, each catering to different scenarios while maintaining top-notch sound quality across the board.
W1 - True Diversity
W2 - Dual Wireless
Air - Perfect travel size and quick and easy setups.
Please see our education page for more information.
What Is Phantom power?
Phantom power is direct current (DC) electric power that is applied equally to both signal wires of a balanced microphone cable. Phantom power supplies are most often built into mixing consoles and microphone preamps. The purpose of Phantom power is to supply 48 volts of current to microphones that have built-in active circuitry over the same cable that is used to send the microphone’s signal back to the mixer or preamp. Since there is no visible power supply unit (like those common with tube microphones) the term Phantom power is used.
Do you offer a belt pack style transmitter with a volume control?
Yes, Evno offers the A2 belt pack transmitter for musicians who prefer an on-body transmitter. The A2 includes a convenient volume control, allowing players to adjust their sound levels effortlessly.
Do you have a hand held wireless microphone?
Yes, Evno offers the AH handheld microphone which sync’s to the W1, W2, and Air receivers. The most common setup would be to combine the AH with W2 Dual receiver to have both a wireless horn microphone and hand held active at the same time.
Where do I order an Evno Microphone?
Evno Microphones are available at our growing number of dealers. The dealer can assist you with your buying needs. See current dealers page for more information. If a dealer does not have stock, you can order directly on our website. For a list of distributors and dealers outside of the USA, please also see the dealers page.
