TPX1-W1 (Komplettes Drahtlossystem)

Konzipiert für Trompete und Flügelhorn mit Schallbecherhalterung

$919.00
Speichern $0.00

Das Evno TPX1-W1 ist ein komplett kabelloses System für Trompeten mit Glockenmontage, das für überragende Leistung und Zuverlässigkeit entwickelt wurde. Es verfügt über ein True Diversity-Empfängerantennensystem, das die größte Reichweite und Stabilität für die kabellose Audioübertragung bietet. Das Paket enthält alles, was in einem kompletten kabellosen Paket benötigt wird.

  • Komplettes Drahtlossystem

    Enthält TPX1 Glockenmikrofon und W1 True Diversity Wireless System

  • WLAN-kompatibel

    Evno, Shure, Sennhieser,

    Akg, McCormick (Kabel separat erhältlich) PS95 für festverdrahtete Setups hinzufügen

  • Glockenmontiert

    Wird mit Schwenkklemme geliefert. Optionale Mikrofonständermontage

  • Trompete und Flügelhorn

    Empfehlung 1. Wahl

Häufigkeit nach Region
Menge
  • Main Features

  • Description

  • Specs

  • Included

  • Setup and Configuration

  • Frequency by

    Region

    •    True Diversity Antenna System: Utilizes two antennas and two receivers simultaneously, combining the audio and switching between antennas based on signal strength for enhanced stability and range.
    •    Range: Offers a maximum distance of approximately 150 meters, making it suitable for large venues and stages.
    •    Metal Chassis: Durable and robust design with a 1-XLR and 1-1/4 inch output.
    •    Rack-Mountable: 1/2 rack-mountable design with a rack-kit and extension cables for standard rack unit placement. Antennas can be positioned on the front of the rack case for easy access and removal.

Description





Evno Microphones can be purchased in combination with Evno Wireless Systems. These packages include the instrument microphone of your choice plus the complete W1 True Diversity System. This is a complete wireless microphone system ready to go. At any time, you also have the option to add the PS95 and the various optional cables for hardwired and wireless use with other major brands, making your wireless package very versatile.



The W1 True Diversity system is offered for nearly all microphones in the Evno line.  The packages include the microphone (instrument specific), complete W1 wireless system including A1 transmitter, W1 receiver, power supply, rack kit,  and BNC antennas.

Receiver:
    •    Frequency Range: 902-928 MHz, 823-832 MHz
    •    Receive Sensitivity: -110 dBm (sinad ≥30 dB)
    •    Signal/Noise Ratio: >105 dB
    •    Power Supply: DC 12V / 500 mA
    •    Audio Output: 1-XLR, 1-1/4 inch
    •    Antenna: True Diversity, Detachable

Transmitter:
    •    Frequency Range: 902-928 MHz, 823-832 MHz
    •    RF Power: 10 mW
    •    Microphone Type: Condenser
    •    Directivity: Cardioid
    •    Deviation: ±48 KHz
    •    Antenna: 1/4 wave length wire type
    •    Battery Voltage: 1.5V (1x1.5V AA Battery)
    •    Power Consumption: 14 hours, battery-dependent

System Specifications:
    •    Frequency Range: 902-928 MHz, 823-832 MHz
    •    Modulation Mode: FM
    •    Dynamic Range: >100 dB
    •    Frequency Response: 60 Hz - 17 KHz ± 3 dB
    •    Total Harmonic Distortion: <0.5% at 1 KHz
    •    Signal/Noise Ratio: ≥108 dB
    •    Distance: Up to 500 feet / 150 m


Each package includes:
    •    Instrument-specific microphone: Tailored to the acoustic properties of the specific instrument.
    •    Complete W1 Wireless System: Ensures high-quality wireless audio, with True Diversity receiver, and rack mountable.

  • Evno W1 True Diversity Wireless System: Complete wireless system.
        •    Rack-Kit: For easy integration into standard rack units.
        •    Antennas: Includes detachable antennas with BNC locking connectors.
        •    Power Supply: 12V power supply included.
        •    Extension Cables: For flexible antenna placement in the front of a rack kit.
        •    A1 Transmitter: Compatible with Evno microphones, ensuring natural reproduction of acoustic instruments in a clip-on, belt pack-less design.

Setup and Configuration
    •    Power Supply: Includes a 12V power supply for easy setup.
    •    Channel Selection: Features 99 available channels that can be quickly changed using an IR sync process, allowing for rapid adjustments on stage.
    •    Compatibility: Can be used with up to 5-6 systems simultaneously, making it ideal for horn style bands. Compatible with other Evno systems (Air, W2) and transmitters (A2, AH, A4), depending on region and availability.
    •    Frequency Ranges:
    ◦    900-928 MHz: For the United States, Brazil, Canada, and other free frequency regions. *See additional information for all regions including South America.
    ◦    823-832 MHz: For most territories in Europe. *See additional information for all regions including Australia.

902-928MHz Countries of operation:

Australia (915-928MHz)
Brazil (902-907, 915-927.75MHz)
Canada
Columbia
Costa Rica
Dominican Republic
Ecuador
Guyana
Hong Kong (923-925MHz)
Indonesia (923-925MHz)
Mexico
New Zealand (915-928Mhz)
Paraguay
Peru
Puerto Rico
South Korea (925-928)
Venezuela
United States of America

823-832Mhz Countries of operation:

Austria
Belgium
Bosnia and Herzegovina
Bulgaria
Cyprus
Denmark
Estonia
Finland
France
Germany
Greece
Hungary
Ireland
Italy
Latvia
Lithuania
Luxembourg
Malta
The Netherlands
Norway
Portugal
Romania (823-826)
Serbia
Spain / Andorra
South Africa
Sweden
Switzerland
United Arab Emirates
United Kingdom
Ukraine

Verarbeitung und Funktionen

Evno W1 Wahre Vielfalt

Das W1 True Diversity-System wird für fast alle Mikrofone der Evno-Reihe angeboten. Die Pakete umfassen das Mikrofon (instrumentenspezifisch), das komplette W1-Funksystem inklusive A1-Sender, W1-Empfänger, Netzteil, Rack-Kit und BNC-Antennen.

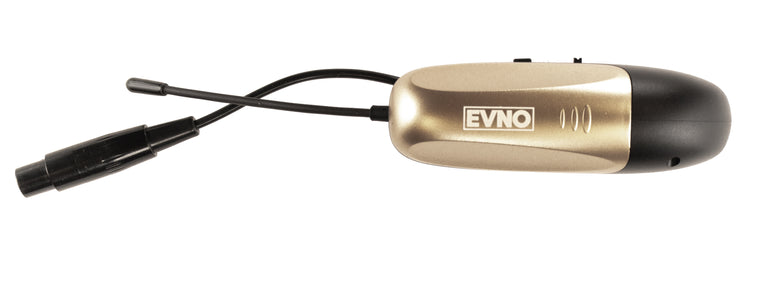

Evno A1 Sender

Der gürtelfreie Sender lässt sich an einem Evno-Mikrofon befestigen.

Rückseite des W1-Empfängers

Hergestellt in den USA

Alle Teile werden von Hand gefertigt und in den USA zusammengebaut!
