Designed specific for Flute - wireless
$849.00
$1,059.00
Save $210.00

The EVNO FLX-W1B is a complete wireless system for flute, designed for superior performance and reliability. It features a True Diversity receiver antenna system, providing the greatest distance and stability for wireless audio transmission with the A2 belt pack transmitter.   The A2 offers a volume control located on the top of the transmitter and is intended for smaller and lighter instruments when the A1 clip-on transmitter is not desired. The package contains everything needed in a complete wireless microphone package for flute.



The A2 transmitter is powered with 2(AA) batteries. The setup includes the Evno Ta4 (3pin-4pin) mini xlr cable which connects the microphone to the A2 transmitter, the PS95 power supply, or Shure wireless as needed. The transmitter receives channel changes via the IR sync window controlled by the receiver.



The Evno W1 is the flag-ship wireless setup in the Evno wireless line.  The W1 offers a True Diversity antenna system which provides the greatest distance at about 150meters.  The Evno W1 True Diversity operates two antennas and two receivers at the same time while combining the audio.  The antenna system switches the audio between antenna A and B depending on which antenna signal is stronger at the position on the stage.  A True Diversity system is more stable and advanced as it also offers greater range as apposed to a diversity system with a single or double antenna.


The FLX-W1B setup includes the Evno W1 True Diversity wireless system with A2 belt pack transmitter, Ta3-Ta4 cable, FLX Microphone, rack-kit, detachable antennas, and a power supply.



The FLX/FLXC microphone is designed specifically for flute and captures the most natural sonic reproduction of the instrument on the market.  The FLX’s newly engineered clamp offers an exceptionally secure and stable fit, ensuring reliable placement in any performance setting and offers the most stable mounting system to date.  Crafted from lightweight polymer, the compact clamp maintains its position without adding bulk. The FLX is the first EVNO model to feature an ultra-compact, vibration-reducing suspension system, minimizing the microphone’s footprint and allowing it to be positioned as close as possible to the optimal sound source. A two piece clamp is guided by pin and secured with a thumb screw while a 4in stay-flex gooseneck points to the position of the sound source.



The FLX can be used in a wired configuration or with beltpack style wireless setups as needed.  The FLX wired system includes the PS95 power supply / preamp and the Ta4 cable for wired use with option to connect to the Evno A2 beltpack wireless transmitter and Shure wireless systems.

  • Complete Wireless System

    Includes FLX Microphone and W1 True Diversity Wireless System with A2 Belt pack wireless transmitter

  • Compatibility

    Can be used hardwired with optional PS95 Preamp and other brands of wireless.

  • Instrument Mounting

    Includes integrated study mounting clamp

  • Flute

    1st choice recommendation for the player looking for belt pack style wireless
Quantity

  • Main Features

  • Description

  • Specs

  • Included

  • Setup and Configuration

  • Frequency by

    Region

    •    True Diversity Antenna System: Utilizes two antennas and two receivers simultaneously, combining the audio and switching between antennas based on signal strength for enhanced stability and range.
    •    Range: Offers a maximum distance of approximately 150 meters, making it suitable for large venues and stages.
    •    Metal Chassis: Durable and robust design with a 1-XLR and 1-1/4 inch output.
    •    Rack-Mountable: 1/2 rack-mountable design with a rack-kit and extension cables for standard rack unit placement. Antennas can be positioned on the front of the rack case for easy access and removal.

Description





Evno Microphones can be purchased in combination with Evno Wireless Systems. These packages include the instrument microphone of your choice plus the complete W1 True Diversity System. This is a complete wireless microphone system ready to go. At any time, you also have the option to add the PS95 and the various optional cables for hardwired and wireless use with other major brands, making your wireless package very versatile.



The W1 True Diversity system is offered for nearly all microphones in the Evno line.  The packages include the microphone (instrument specific), complete W1 wireless system including A1 transmitter, W1 receiver, power supply, rack kit,  and BNC antennas.

Receiver:
    •    Frequency Range: 902-928 MHz, 823-832 MHz
    •    Receive Sensitivity: -110 dBm (sinad ≥30 dB)
    •    Signal/Noise Ratio: >105 dB
    •    Power Supply: DC 12V / 500 mA
    •    Audio Output: 1-XLR, 1-1/4 inch
    •    Antenna: True Diversity, Detachable

Transmitter:
    •    Frequency Range: 902-928 MHz, 823-832 MHz
    •    RF Power: 10 mW
    •    Microphone Type: Condenser
    •    Directivity: Cardioid
    •    Deviation: ±48 KHz
    •    Antenna: 1/4 wave length wire type
    •    Battery Voltage: 1.5V (1x1.5V AA Battery)
    •    Power Consumption: 14 hours, battery-dependent

System Specifications:
    •    Frequency Range: 902-928 MHz, 823-832 MHz
    •    Modulation Mode: FM
    •    Dynamic Range: >100 dB
    •    Frequency Response: 60 Hz - 17 KHz ± 3 dB
    •    Total Harmonic Distortion: <0.5% at 1 KHz
    •    Signal/Noise Ratio: ≥108 dB
    •    Distance: Up to 500 feet / 150 m


Each package includes:
    •    Instrument-specific microphone: Tailored to the acoustic properties of the specific instrument.
    •    Complete W1 Wireless System: Ensures high-quality wireless audio, with True Diversity receiver, and rack mountable.

  • Evno W1 True Diversity Wireless System: Complete wireless system.
        •    Rack-Kit: For easy integration into standard rack units.
        •    Antennas: Includes detachable antennas with BNC locking connectors.
        •    Power Supply: 12V power supply included.
        •    Extension Cables: For flexible antenna placement in the front of a rack kit.
        •    A1 Transmitter: Compatible with Evno microphones, ensuring natural reproduction of acoustic instruments in a clip-on, belt pack-less design.

Setup and Configuration
    •    Power Supply: Includes a 12V power supply for easy setup.
    •    Channel Selection: Features 99 available channels that can be quickly changed using an IR sync process, allowing for rapid adjustments on stage.
    •    Compatibility: Can be used with up to 5-6 systems simultaneously, making it ideal for horn style bands. Compatible with other Evno systems (Air, W2) and transmitters (A2, AH, A4), depending on region and availability.
    •    Frequency Ranges:
    ◦    900-928 MHz: For the United States, Brazil, Canada, and other free frequency regions. *See additional information for all regions including South America.
    ◦    823-832 MHz: For most territories in Europe. *See additional information for all regions including Australia.

902-928MHz Countries of operation:

Australia (915-928MHz)
Brazil (902-907, 915-927.75MHz)
Canada
Columbia
Costa Rica
Dominican Republic
Ecuador
Guyana
Hong Kong (923-925MHz)
Indonesia (923-925MHz)
Mexico
New Zealand (915-928Mhz)
Paraguay
Peru
Puerto Rico
South Korea (925-928)
Venezuela
United States of America

823-832Mhz Countries of operation:

Austria
Belgium
Bosnia and Herzegovina
Bulgaria
Cyprus
Denmark
Estonia
Finland
France
Germany
Greece
Hungary
Ireland
Italy
Latvia
Lithuania
Luxembourg
Malta
The Netherlands
Norway
Portugal
Romania (823-826)
Serbia
Spain / Andorra
South Africa
Sweden
Switzerland
United Arab Emirates
United Kingdom
Ukraine

Craftsmanship and Features

Evno W1 True Diversity

The W1 True Diversity system is offered for nearly all microphones in the Evno line.  The packages include the microphone (instrument specific), complete W1 wireless system including A1 transmitter, W1 receiver, power supply, rack kit,  and BNC antennas.

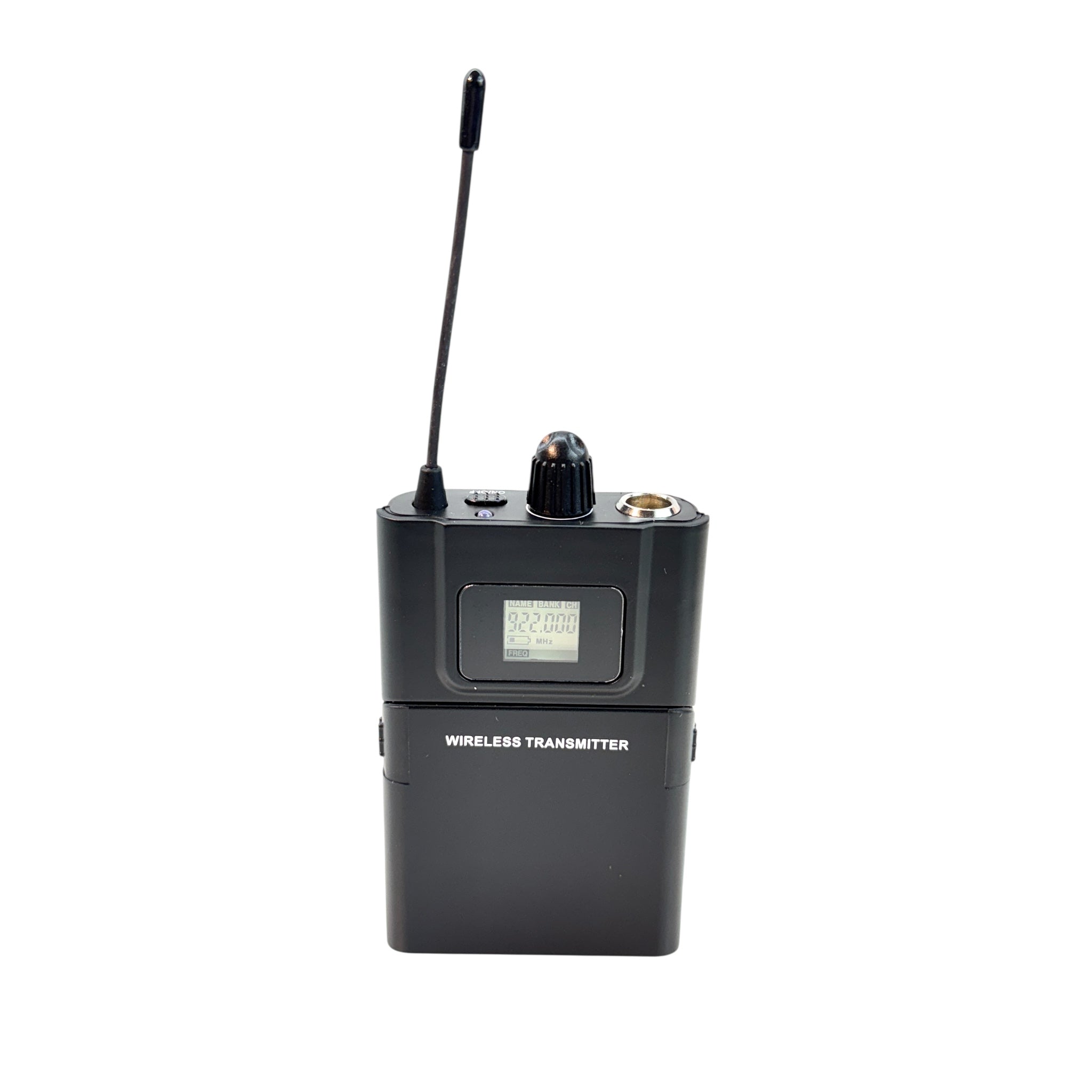

Evno A2 Transmitter

Beltpack style transmitter with volume control. The A2 transmitter is powered with 2(AA) batteries. The setup includes the Evno Ta4 (3pin-4pin) mini xlr cable which connects the microphone to the A2 transmitter. The transmitter receives channel changes via the IR sync window controlled by the receiver.

W1 Receiver Back Panel

Made in the USA

All parts are made by hand and assembled in the USA!

Additional Recomendations

EVNO FEATURED ACCESSORIES

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

Can I use the microphone wireless?

All Evno microphone packages are designed to be compatible with wireless setups. While each package includes specific components tailored to the chosen setup, the microphone itself is versatile and can be seamlessly integrated with any configuration, including wireless.

Can I use my Evno microphone with other brands of wireless?

Yes, EVNO microphones are designed to be versatile and compatible with various other popular wireless systems, including those from Shure, Sennheiser, AKG, and McCormick. To ensure seamless integration, you will need the correct adapter cable for each brand.

What is the best EVNO wireless setup?

When selecting the best wireless setup from EVNO Microphone Systems, it's essential to consider your specific needs and performance requirements. EVNO offers three distinct wireless options, each catering to different scenarios while maintaining top-notch sound quality across the board.

W1 - True Diversity

W2 - Dual Wireless

Air - Perfect travel size and quick and easy setups.



Please see our education page for more information.

What Is Phantom power?

Phantom power is direct current (DC) electric power that is applied equally to both signal wires of a balanced microphone cable. Phantom power supplies are most often built into mixing consoles and microphone preamps. The purpose of Phantom power is to supply 48 volts of current to microphones that have built-in active circuitry over the same cable that is used to send the microphone’s signal back to the mixer or preamp. Since there is no visible power supply unit (like those common with tube microphones) the term Phantom power is used.

Do you offer a belt pack style transmitter with a volume control?

Yes, Evno offers the A2 belt pack transmitter for musicians who prefer an on-body transmitter. The A2 includes a convenient volume control, allowing players to adjust their sound levels effortlessly.

Do you have a hand held wireless microphone?

Yes, Evno offers the AH handheld microphone which sync’s to the W1, W2, and Air receivers.  The most common setup would be to combine the AH with W2 Dual receiver to have both a wireless horn microphone and hand held active at the same time.

Where do I order an Evno Microphone?

Evno Microphones are available at our growing number of dealers. The dealer can assist you with your buying needs. See current dealers page for more information.  If a dealer does not have stock, you can order directly on our website.  For a list of distributors and dealers outside of the USA, please also see the dealers page.
